Turbokit/ Turbocharger for Fiat Coupe 20v Turbo GTR-25 fits ready to install

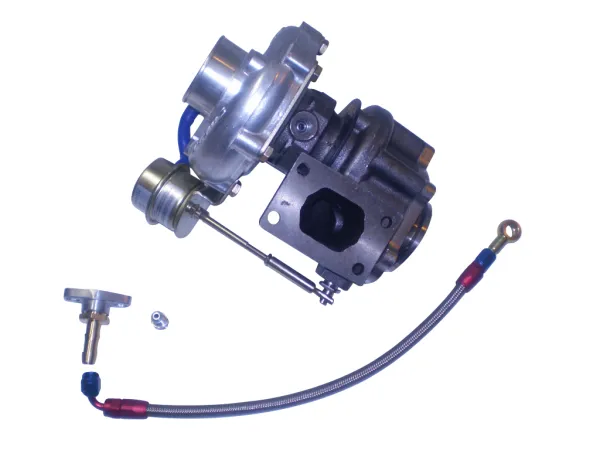

Scope of delivery:
1. Turbocharger GTR-25

---

---

---

2. Y-pipe adapter suitable for the original Y-pipe

---

3. Oil inlet adapter

---

4. Oil return flange with connection to the original return line

---

5. Oil supply line made of steel braided

---

6. Gaskets

---

Technical data turbocharger:
- Compressor housing exterior A/R 42
- Turbine housing 49 A/R
- 360° degree racing bearings
- T25 flange (hole dimensions measured in the center: 73x40mm)
- oil-cooled

---

- water-cooled
- Shaft is finely balanced
- up to approx. 1.6 bar
- up to 300hp

---

Description:
The turbocharger GTR-25 is minimally larger than the original turbocharger, it is simply exchanged for the original turbocharger. No adjustment work, no welding necessary. A special Y-pipe flange is included in the kit, which fits directly onto the original downpipe. It can be operated without software adaptation, but to achieve the maximum power of approx. 300hp with this turbo, a 255L/h fuel pump must be used and the software adapted.

---

Suitable for:
- all Fiat Coupe/Kappa 20vt Turbo 5 cylinder.
