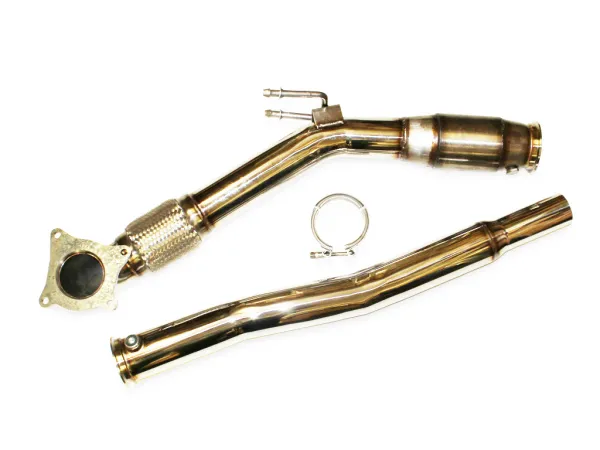

Downpipe TFSI ø 76mm for Golf 5 GTI, Golf 6 GTI, Seat Leon 1P, Audi A3, Audi TT 2.0 TFSI with 200 cylinder E-mark Euro 5 compatible stainless steel

Scope of delivery:
- Downpipe TFSI ø 76mm for Golf 5 GTI, Golf 6 GTI, Seat Leon 1P, Audi A3, Audi TT 2.0 TFSI with 200 sports cat E-mark Euro 5 compliant stainless steel
- Gasket
- V-band clamp ø 76mm

---

Description plug&play 2.0 TFSI Downpipe:

The ø 76mm downpipe significantly reduces back pressure, relieving the turbo, which in turn brings more power and lower exhaust temperatures. The downstream sensor may need to be programmed out. The Y-pipe is made of stainless steel, except for the flanges, which are made of steel so they do not warp and thus prevent leaks. The flange surfaces are machined. There are 2 lambda sensor connections M18x1.5mm welded in. The connecting pipe to the exhaust has ø 60mm as original, we can also provide 76mm—please specify when ordering.

---

The Y-pipe sits between the turbocharger and exhaust. A 200 cell sports cat with ø 101mm diameter is welded in. Outputs up to max. 500HP are possible, but of course the other components such as intake, exhaust system, injectors, manifold, intercooler, turbocharger must also be installed and the software adapted accordingly.

---

The downpipe also fits upgrade turbochargers such as K04-064 plug & play, and is simply exchanged 1:1 for the original.

---

The high-quality 200 cell sports cat has an E-mark with the E-number E9-103R-00.3083. This allows the Euro 5 emissions standard to be reached even at 500 HP. (Requirement for this is coordinated engine management / software and hardware).

---

The homologation certificate for the catalyst with the E-number E9-103R-00.3083 is supplied. This allows official registration in the vehicle papers in consultation with TÜV.

---

suitable for:
- Audi A3 8P 2.0 TFSI FWD AXX, BPY, BWA, CAWB, CCZA 200HP
- Audi TT 8J 1.8 TFSI FWD 160HP
- Audi TT 8J 2.0 TFSI FWD 200HP, 211HP
- Seat Altea 5P 1.8 TFSI FWD 160HP
- Seat Altea 5P FR 2.0 TFSI FWD 200HP
- Seat Altea XL 5P 1.8 TFSI 155HP
- Seat Leon 1P 1.8 TSI 160HP BZB/CDAA
- Seat Leon 1P 2.0 TFSI BWA 185HP
- Seat Leon 1P 2.0 TFSI (FR) BWA 200HP
- Seat Leon 1P 2.0 TSI FR CCZB 211HP
- Seat Leon 1P 2.0 TSI Cupra + R 240-265HP
- Skoda Octavia 1Z 1.8 TSI BZB
- Skoda Octavia 1Z 2.0 TFSI BWA, CAWB, CCZA 200HP
- Skoda Supberb 2.0 TSI 200HP CCZA
- VW Beetle 5C 2.0 TFSI 200HP
- VW Eos 2.0 TFSI FWD BWA, CAWB, CCZA 200HP, CCZB 211HP
- VW Golf 5 2.0 TFSI FWD AXX, BWA, BPY, CAWB, BYD 200-230HP
- VW Jetta 1KM 2.0 TFSI 200HP / 211HP
- VW Golf 6 2.0 TFSI GTI FWD CCZB 211HP
- VW Golf 6 2.0 TFSI GTI ED35 CDLG 235HP
- VW Scirocco 3 2.0 TSI CAWB 200HP, CCZB 211HP, CDLA 265HP

---

Not for Quattro models

---



---

Registration:
For individual approval under §21 StVZO please ask your TÜV examiner.

---

We would like to point out that installation of this item constitutes a modification which terminates the vehicle’s operating permit under StVZO. Not legal for use on public roads.

---
