- Product description
Product description
Scope of delivery:

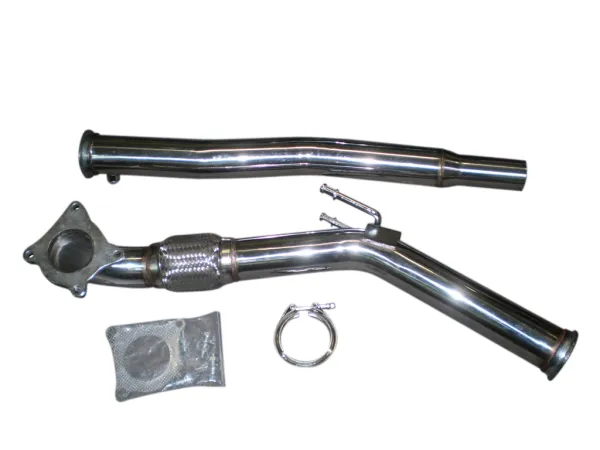

- Y-pipe stainless steel ø 76mm for VW Golf 5 2.0TFSI with interlock flex pipe*
- V-band clamp ø 76mm
Description:
The ø 76mm downpipe significantly reduces the back pressure, relieving the turbo, which in turn results in more power and lower exhaust gas temperature. The rear catalytic converter sensor may have to be programmed out. The Y-pipe is made of stainless steel except for the flanges, which are made of steel so they do not warp and thus prevent leaks. The flange surfaces are machined. Two lambda sensor connections M18x1.5mm are welded in.
The connecting pipe to the exhaust has ø 76mm and reduces to the original dimension of the exhaust system of 60mm.
The Y-pipe sits between turbocharger and exhaust. A 200 cell cat is recommended. Power output up to max. 500hp can be achieved; of course, the other components such as intake, exhaust system, injectors, manifold, intercooler, turbocharger must also be installed and the software adjusted accordingly. Upgrade turbochargers such as K04-064 also fit plug & play on the downpipe.
suitable for:
- Audi A3 8P 2.0 TFSI FWD AXX, BPY, BWA, CAWB, CCZA 200hp
- Audi TT 8J 2.0 TFSI FWD 200hp, 211hp
- Seat Altea 5P 1.8 TFSI FWD 160hp
- Seat Altea 5P FR 2.0 TFSI FWD 200hp
- Seat Altea XL 5P 1.8 TFSI 155hp
- Seat Leon 1P 1.8 TSI 160hp BZB/CDAA
- Seat Leon 1P 2.0 TFSI BWA 185hp
- Seat Leon 1P 2.0 TFSI (FR) BWA 200hp
- Seat Leon 1P 2.0 TSI FR CCZB 211hp
- Seat Leon 1P 2.0 TSI Cupra + R 240-265hp
- Skoda Octavia 1Z 1.8 TSI BZB
- Skoda Octavia 1Z 2.0 TFSI BWA, CAWB, CCZA 200hp
- Skoda Supberb 2.0 TSI 200hp CCZA
- VW Beetle 5C 2.0 TFSI 200hp
- VW Eos 2.0 TFSI FWD BWA, CAWB, CCZA 200hp, CCZB 211hp
- VW Golf 5 2.0 TFSI FWD AXX, BWA, BPY, CAWB, BYD 200-230hp
- VW Jetta 1KM 2.0 TFSI 200hp / 211hp
- VW Golf 6 2.0 TFSI GTI FWD CCZB 211hp
- VW Golf 6 2.0 TFSI GTI ED35 CDLG 235hp
- VW Scirocco 3 2.0 TFSI CAWB 200hp, CCZB 211hp, CDLA 265hp
Not for Quattro models
Registration:
*We would like to point out that installing this item constitutes a modification which invalidates the vehicle’s operating license according to the StVZO.
For an individual approval in accordance with §21 StVZO, please ask your TÜV inspector.
We would like to point out that installing this item constitutes a modification which invalidates the vehicle’s operating license according to the StVZO. Not permitted for use on public roads.
Optional:
- Sports cat / racing cat 200 cells ø 102mm - L 250mm stainless steel metal cat with E-mark R103 up to Euro 4 & lambda sensor connection 340123
Optional matching parts:
- Y-pipe stainless steel ø 76mm for VW Golf 5 2.0TFSI with interlock flex pipe*
- V-band clamp ø 76mm
Description:
The ø 76mm downpipe significantly reduces the back pressure, relieving the turbo, which in turn results in more power and lower exhaust gas temperature. The rear catalytic converter sensor may have to be programmed out. The Y-pipe is made of stainless steel except for the flanges, which are made of steel so they do not warp and thus prevent leaks. The flange surfaces are machined. Two lambda sensor connections M18x1.5mm are welded in.
The connecting pipe to the exhaust has ø 76mm and reduces to the original dimension of the exhaust system of 60mm.
The Y-pipe sits between turbocharger and exhaust. A 200 cell cat is recommended. Power output up to max. 500hp can be achieved; of course, the other components such as intake, exhaust system, injectors, manifold, intercooler, turbocharger must also be installed and the software adjusted accordingly. Upgrade turbochargers such as K04-064 also fit plug & play on the downpipe.
suitable for:
- Audi A3 8P 2.0 TFSI FWD AXX, BPY, BWA, CAWB, CCZA 200hp
- Audi TT 8J 2.0 TFSI FWD 200hp, 211hp
- Seat Altea 5P 1.8 TFSI FWD 160hp
- Seat Altea 5P FR 2.0 TFSI FWD 200hp
- Seat Altea XL 5P 1.8 TFSI 155hp
- Seat Leon 1P 1.8 TSI 160hp BZB/CDAA
- Seat Leon 1P 2.0 TFSI BWA 185hp
- Seat Leon 1P 2.0 TFSI (FR) BWA 200hp
- Seat Leon 1P 2.0 TSI FR CCZB 211hp
- Seat Leon 1P 2.0 TSI Cupra + R 240-265hp
- Skoda Octavia 1Z 1.8 TSI BZB
- Skoda Octavia 1Z 2.0 TFSI BWA, CAWB, CCZA 200hp
- Skoda Supberb 2.0 TSI 200hp CCZA
- VW Beetle 5C 2.0 TFSI 200hp
- VW Eos 2.0 TFSI FWD BWA, CAWB, CCZA 200hp, CCZB 211hp
- VW Golf 5 2.0 TFSI FWD AXX, BWA, BPY, CAWB, BYD 200-230hp
- VW Jetta 1KM 2.0 TFSI 200hp / 211hp
- VW Golf 6 2.0 TFSI GTI FWD CCZB 211hp
- VW Golf 6 2.0 TFSI GTI ED35 CDLG 235hp
- VW Scirocco 3 2.0 TFSI CAWB 200hp, CCZB 211hp, CDLA 265hp
Not for Quattro models
Registration:
*We would like to point out that installing this item constitutes a modification which invalidates the vehicle’s operating license according to the StVZO.
For an individual approval in accordance with §21 StVZO, please ask your TÜV inspector.
We would like to point out that installing this item constitutes a modification which invalidates the vehicle’s operating license according to the StVZO. Not permitted for use on public roads.
Optional:
- Sports cat / racing cat 200 cells ø 102mm - L 250mm stainless steel metal cat with E-mark R103 up to Euro 4 & lambda sensor connection 340123
Optional matching parts:
|
|
| ||||||
|
|
| ||||||
|
|
| ||||||
|
|
| ||||||
|
|
