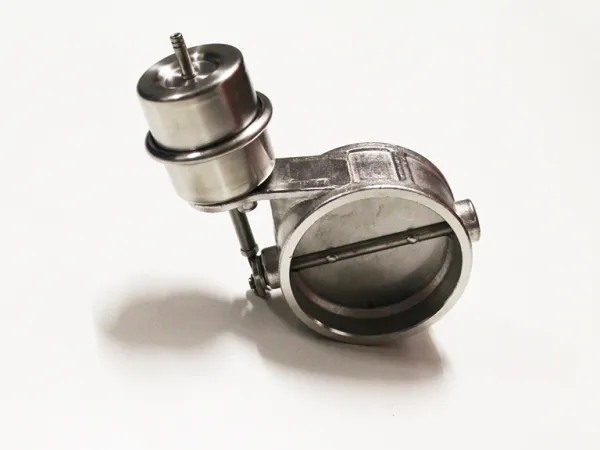

Flap control ø 63,5mm closed overpressure controlled exhaust flap stainless steel

Scope of delivery:
-  Flap control ø 63.5mm closed overpressure controlled exhaust flap stainless steel

---

Description:
- the flap is closed and opens in the event of overpressure
- Inner diameter ø 63.5mm
- Outer diameter ø 74mm
- is made of stainless steel
- adjustable

---

We can supply you with inexpensive, high-quality stainless steel exhaust flaps for your exhaust system. These are then used to regulate the volume of the exhaust.

---



---

The way it works is quite simple:

---



---

When closed, the exhaust gases are routed through the silencer, as soon as the flap is open, part of the exhaust gas passes through a continuous pipe, making the exhaust louder. The overpressure-controlled flap is closed in the underpressure range and opens as soon as overpressure / boost pressure is created. A hose is laid from the intake manifold to the overpressure box of the flap or the flap is controlled via a remote control or switch. For this purpose, a pulse valve is installed in the hose.

---

Suitable for:
- Exhaust systems with 76mm diameter

---

Optional matching parts:
- Remote control for flap control
