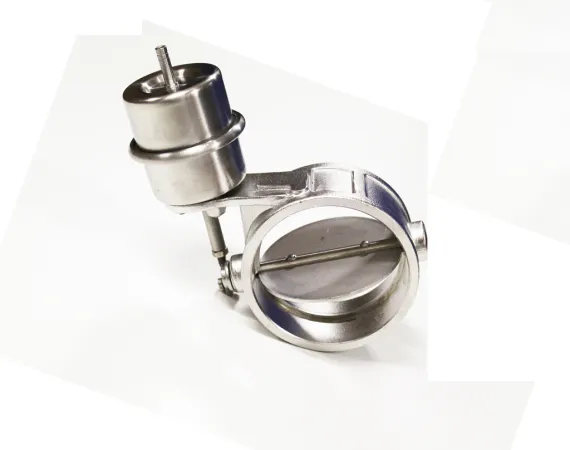

Flap control ø 89mm 3,5" open vacuum controlled exhaust flap stainless steel

Scope of delivery:
-  Flap control ø 89mm 3.5" open vacuum controlled exhaust flap stainless steel

---

Description:
- the flap is closed when vacuum is present and opens as the vacuum decreases
- Inner diameter ø 100mm
- Outer diameter ø 86mm
- is made of stainless steel
- adjustable

---

You will receive inexpensive, high-quality stainless steel exhaust flaps for your exhaust system from us. These are then used to regulate the volume of the exhaust.

---



---

The way it works is quite simple:

---



---

When closed, the exhaust gases are routed through the silencer; as soon as the flap is open, part goes through a continuous pipe, making the exhaust louder. The vacuum-controlled flap is closed in the vacuum range, opening as soon as the vacuum decreases or, in the case of turbo engines, goes into overpressure. A hose is laid from the intake manifold to the vacuum can of the flap, or the flap is controlled via a remote control or switch. A pulse valve is installed in the hose for this purpose.

---

Suitable for:
- Exhaust systems with 89mm diameter

---

Optional matching parts:
- Remote control for flap control

---
