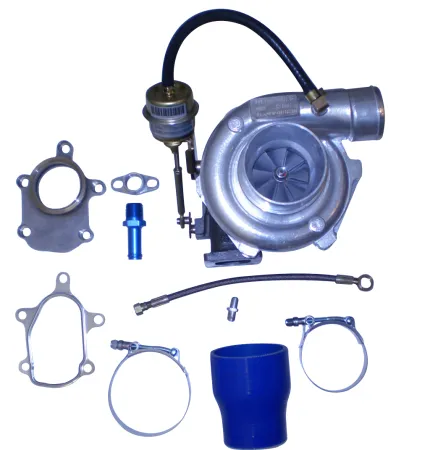

Turbo Kit for Fiat Coupe 20v Turbo with GTR-2871 turbocharger upgrade ready to install up to 360hp

Scope of delivery:
  1x metal gasket for T25/T28 flange
  1x metal gasket for Y-pipe flange GT25xx + GT28xx
  1x gasket for oil return GT
  1x flange for oil return for GT-R turbos 1/2 NPT
  1x V2A flange for Fiat Coupe 20v on original Y-pipe with GT28 turbocharger
  1x HD wide-band clamp 87-79mm for 76mm silicone
  1x straight silicone reducer 76x60mm
  2x copper gasket M12
  1x ring eye M12 to D04
  1x HD wide-band clamp 71-63mm for 60mm silicone
  1x adapter for oil inlet on GT25 GTR-2871 3mm bore
  1x oil supply line D04 90° + D04 straight connections 50cm
  7x countersunk head screw M8x20
  1x adapter 45° 1/2 NPT > 15mm hose connector
  1x turbocharger GTR-2871R (GT2871R) 380hp wastegate 60>64A/R 360° racing bearings T25

---

Technical specifications turbocharger:
- compressor housing external A/R 60
- compressor wheel 71>54.13mm
- turbine housing 64 A/R
- 360° racing bearings
- T25 flange (hole dimensions measured at center: 73x40mm)
- oil-cooled

---

- water-cooled
- shaft is precision-balanced
- up to approx. 1.6 bar
- up to 380hp

---

Description:
The upgrade turbocharger Garrett GTR-2871 is simply swapped for the original turbocharger. No adjustments or welding required. A special Y-pipe flange is included in the kit, which fits directly onto the original downpipe. Thanks to the ball bearings, the turbo responds very quickly. The maximum power output with this turbo is approx. 360hp; to achieve this, larger injectors, ø 70mm downpipe, a 255L/h fuel pump, a 100 cell catalytic converter, sports exhaust ø 70mm and upgrade intercooler must be used. It is recommended to install steel connecting rods and forged pistons. The engine management must then be adapted to the components.

---

Fits:
- Fiat Coupe 20v Turbo 5 cylinder
- Lancia Kappa 20v Turbo 5 cylinder

---

Note: The above-mentioned turbocharger is intended for motorsport and does not correspond to any manufacturer-approved version. If the installation changes the vehicle's performance specifications, the general operating permit and insurance coverage will be void. Therefore, no warranty can be provided. We are also not liable for consequential damages.
