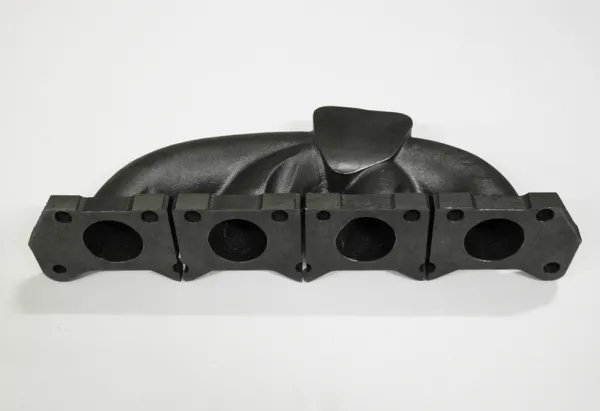

Turbo manifold 1.8T Golf 4 A3 TT 150-180hp K03 ugprade Turbo manifold slotted without hole pattern for turbocharger

Scope of delivery: - 1.8T turbo manifold made of cast iron upgrade slotted without drilling pattern for turbocharger

---

Technical data:
- Cast turbo manifold
- the manifold is supplied without a hole pattern for the turbocharger, so you have the option of flanging on a corresponding turbo, e.g. K04-023.
- larger pipe diameter ø 40mm up to 10% more power
- Slotted cylinder head flange to prevent heat cracks
- longer bolts must be used see here http://www.turbo-parts.de/product_info.php?info=p1574_Schrauben-fuer-K03-Kruemmer-hochfest-12-9-3-Stueck.html

---

Description:
Our cast manifolds are manufactured in a metal mold from high-quality cast iron and then CNC-machined, which is characterized by a high fitting accuracy. In contrast to the tubular manifold, this one is more durable. The flange to the cylinder head is slotted so that the manifold can expand and does not tear. There is no drilling pattern, so you can make your own drilling pattern.

---

suitable for:
- all Audi/VW 1.8T engines with transverse installation except all-wheel drive models
- Turbocharger K03, K04 etc.

---

Optional matching accessories:
-  Manifold gasket for turbo
-  3 high-strength screws
