Intercooler kit for Golf 5 Audi A3 S3 Seat Leon Passat B6 2.0 TFSI Double-DIN 56mm plug and play blue hoses

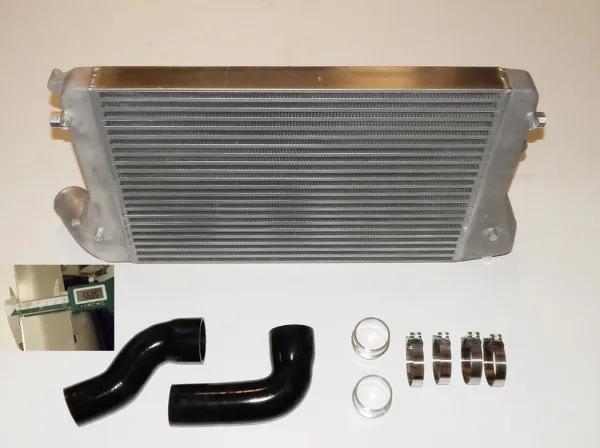

Scope of delivery: - Intercooler made of aluminum plug and play
- 2 silicone hoses blue
-  without click adapter

---

Technical data:
- cast aluminum boxes
- Bar&Plate core
- Core size 610x400x56mm
- Overall size with boxes 870x400x175

---

suitable for:
Audi A3 (8P) incl. S3
1.8l TFSI  / 2.0l TFSI / 2.0l TDI
118kW / 147kW / 195kW
103kW /125KW
engine code: CDAA+CCZA+CDLA+CFFB+GFGB

Audi TT (8J) incl. TTS
1.8l TFSI / 2.0l TFSI /2.0l TDI
118kW / 147kW / 200kW / 125kW
engine code: CDAA+CCZA+CDLB+CFGB

Seat Leon (1P) incl. Cupra / Cupra R
2.0l TFSI / 2.0l TDI
135kW / 147kW / 155kW / 177kW / 195kW
103kW /125KW
engine code: BWA+CCZB+CDLD+CDLA+BWJ+CFHC+CFJA

Skoda Octavia (1Z)
1.8l TSI / 2.0 TFSI/TSI / 2.0l TDI
118kW / 147kW / 81kW / 103kW / 125kW
engine code: CDAA+CCZA+CFHF+CFHC+CEGA

Skoda Superb (3T)
2.0l TSI  / 2.0l TDI
147kW / 103kW / 125kW
engine code: CCZA+CFFB+CFGB

VW Golf V+VI (1K)
1.4l TSI / 2.0l TSI / 2.0 TFSI/ 2.0l TDI
103kW / 118kW / 147kW / 155kW / 169KW / 199kW
103kW / 125kW /
engine code: BMY+BYD+AZV+CTHD+CAVD+CCZB+CDLF+CFFB+CFGB

---

VW Jetta III+IV (1KM/16(16H)
1.4l TSI / 2.0l TSI / 2.0l TDI
103kW / 118kW / 147kW / 155kW
engine code: BMY+AZV+CTHD+CAVD+CPLA+CFFB

VW Eos (1F)
1.4l TSI / 2.0l TSI / 2.0l TDI
103kW / 118kW / 147kW / 155kW
engine code: BWA+CTHD+CAVD+CCZB+CFFB

VW Passat (3C / 3CC)
1.8l TSI  / 2.0l TFSI/TSI  / 2.0l TDI
engine code: CDAA+CCZB+BWA+CFFB
103kW / 118kW / 147kW / 155kW

VW Scirocco III (13)
1.4l TSI / 2.0l TSI / 2.0l TDI
118kW / 155kW / 195kW
103kW / 125kW
engine code: CAVD+CCZB+CDLA+CFHC+CFGB

---

Description:
The upgrade intercooler is installed at the front, between turbocharger and intake manifold. It is simply replaced 1:1 with the original. The purpose of an intercooler is to ensure that the air heated by the turbocharger is cooled down. By cooling down the compressed air, more air mass enters the combustion chamber at the same volume, allowing more fuel to be burned, which increases performance and efficiency. The lower the charge air, the lower the thermal load on the engine, the turbocharger because it requires less rpm for the same air mass. Fuel consumption is also reduced, and the engine receives slightly better exhaust values, provided the control unit is adjusted accordingly. Care must be taken to ensure that the intercooler gets as much airflow as possible. The coolers can be used in turbocharged diesel and gasoline engines. The intercooler offered here is made entirely of aluminum with cast boxes and has a Bar'n Plate core, ideal for motorsport and tuning. Each intercooler is tested up to 5 bar before delivery.

---
