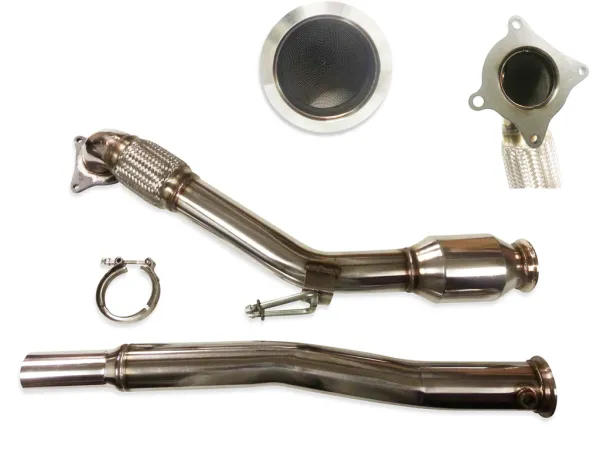

Downpipe TFSI for Golf 5 GTI, Golf 6 GTI, Seat Leon 1P, Audi A3, Audi TT 2.0 TFSI with 100 cells sports cat in ø 76mm made of stainless steel

Scope of delivery:
- Downpipe for Golf 5 GTI, Golf 6 GTI, Seat Leon 1P, Audi A3, Audi TT 2.0 TFSI with 100 cell sport cat in ø 76mm made of stainless steel.
- V-band clamp ø 76mm

---

Description plug&play 2.0 TFSI downpipe:

The ø 76mm downpipe significantly reduces the back pressure, relieves the turbo which in turn brings more power and lower exhaust gas temperature. The post-cat sensor may have to be programmed out. The downpipe is made of stainless steel except for the flanges, which are made of steel so they do not warp and thus prevent leaks. The flange surfaces are machined. There are 2 lambda sensor connections M18x1.5mm welded in. The connecting pipe to the exhaust has ø 76mm, it can also be ordered with a reducing sleeve 76>60mm as original. The downpipe sits between turbocharger and exhaust. A 100 cell sport cat with ø 120mm diameter is welded in. Up to max. 500HP can be driven, of course all other components such as intake, exhaust system, fuel injectors, manifold, intercooler, turbocharger must be installed and the software adapted to this. The downpipe also fits upgraded turbochargers such as K04-064 plug & play, it is simply replaced 1:1 with the original.

---

suitable for:
 - Audi A3 8P 2.0 TFSI FWD AXX, BPY, BWA, CAWB, CCZA 200HP
- Audi TT 8J 2.0 TFSI FWD 200HP, 211HP
- Audi TT 8J 1.8 TFSI FWD 160HP
- Seat Altea 5P  1.8 TFSI FWD 160HP
- Seat Altea 5P FR 2.0 TFSI FWD 200HP
- Seat Altea XL 5P 1.8 TFSI 155HP
- Seat Leon 1P 1.8 TSI 160HP BZB
- Seat Leon 1P 2.0 TFSI FWD 185HP BWA
- Seat Leon 1P 2.0 TFSI (FR) 200HP
- Seat Leon 1P 2.0 TSI CCZB 211HP
- Seat Leon 1P 2.0 TSI Cupra 240HP BWJ / CDLD
- Seat Leon 1P 2.0 TSI Cupra R 265HP CDLA
- Skoda Superb 2.0 TSI 200HP CCZA
- Skoda Octavia 1Z 1.8 TSI BZB
- Skoda Octavia 1Z 2.0 TFSI BWA, CAWB, CCZA 200HP
- VW Beetle 5C 2.0 TFSI 200HP
- VW Eos 2.0 TFSI FWD BWA, CAWB, CCZA 200HP, CCZB 211HP
- VW Golf 5 2.0 TFSI FWD AXX, BWA, BPY, CAWB, BYD 200-230HP
- VW Jetta 1KM 2.0 TFSI 200HP / 211HP
- VW Golf 6 2.0 TFSI GTI FWD CCZB 211HP
- VW Golf 6 2.0 TFSI GTI ED35 CDLG 235HP
- VW Scirocco 3 2.0 TSI CAWB 200HP, CCZB 211HP, CDLA 265HP

---

Not for Quattro models

---

Registration:
For individual approval according to §21 StVZO please ask your TÜV inspector.

---

We would like to point out that installing this item constitutes a modification that will void the vehicle's road approval according to the StVZO. Not permitted for use on public roads.

---
