Flap control ø 76mm 3" electric exhaust flap stainless steel

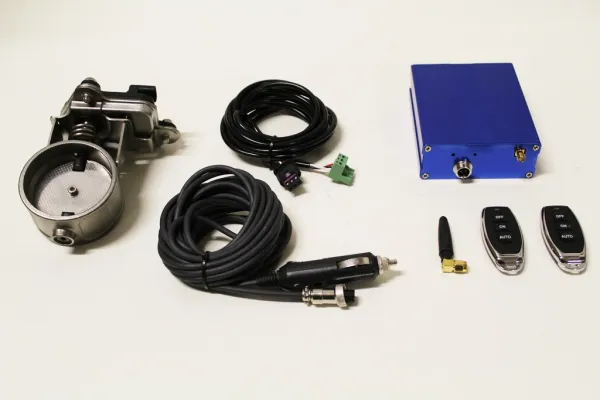

Scope of delivery:
-  Flap control ø 76mm 3" electric exhaust flap stainless steel with control
- wiring harness
- Remote control 2x
- Control box
- see also photo

---

Description:
-  Inner diameter ø 76mm
- Outer diameter ø 86mm
- is made of stainless steel
- electrically adjustable

---

We can supply you with inexpensive, high-quality stainless steel flap controls for your exhaust system. These are then used to regulate the volume of the exhaust.

---



---

The way it works is quite simple:

---



---

When closed, the exhaust gases are directed through the silencer, as soon as the flap is open part of the exhaust gas passes through a continuous pipe, making the exhaust louder. The vacuum-controlled flap is closed in the vacuum range, it then opens as soon as the vacuum decreases or, in the case of turbo engines, goes into overpressure. A hose is laid from the intake manifold to the vacuum can of the flap or the flap is controlled via a remote control or switch. A pulse valve is installed in the hose for this purpose.

---

Suitable for:
- Exhaust systems with 63.5mm diameter

---

Optional matching parts:
- Remote control for flap control
