Garrett turbo kit for Fiat Coupe 20v Turbo with Garrett GT2871R turbocharger upgrade ready to install up to 420hp

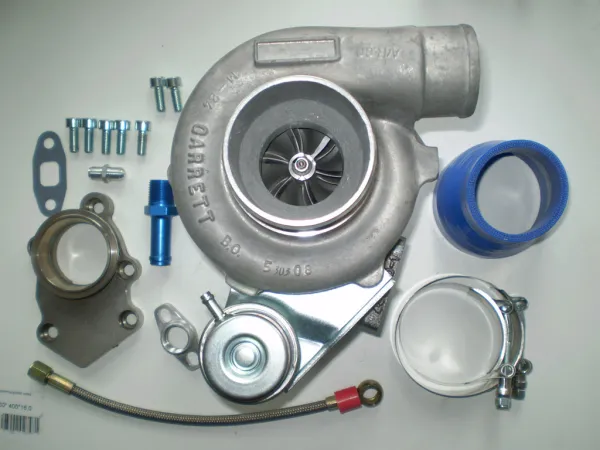

Scope of delivery:
1. Turbocharger Garrett GT2871R 743347-5002S / 5004S ball-bearing + water-cooled

---

2. Downpipe adapter compatible with the original downpipe

---

3. Oil inlet adapter/oil restrictor + oil line

---

4. Oil return flange with connection to the original return line

---

5. Silicone reducer 76>60mm

---

6. Clamps + screws

---

Technical specifications turbocharger:
- Compressor housing external A/R 60
- Compressor wheel 71>53.1mm
- Turbine housing 64A/R
- double ball-bearing
- T25 flange (hole dimensions measured center: 73x40mm)
- oil-cooled

---

- water-cooled
- Shaft is precision balanced
- up to approx. 2 bar
- up to 475hp

---

Description:
The ball-bearing upgrade turbocharger Garrett GT2871R is simply exchanged for the original turbocharger. No adaptation work, no welding needed. A special downpipe flange is included in the kit, which fits directly onto the original downpipe. Thanks to the ball bearings, the turbo responds very early. The maximum output with this turbo is approx. 420hp; to achieve this, larger injectors, ø 70mm downpipe, a 255L/h fuel pump, 100 cell catalyst, 70mm sport exhaust and an upgraded intercooler must be used. For the engine to withstand the power, steel connecting rods  and forged pistons are needed. The engine management must then be adapted to suit the components.

---

Suitable for:
- all Fiat Coupe 20v Turbo 5 cylinder.

---

Optional:
- Software 395hp + 399,- Euro

---

Note: The above-mentioned turbocharger is intended for motorsport use and does not correspond to any manufacturer-approved version. If installation changes the vehicle’s performance data, the general operating permit and insurance cover expire. A warranty therefore cannot be given. We accept no liability for consequential damages either.

---
