Garrett turbo kit for Fiat Coupe 20v Turbo with Garrett GTX2860R turbocharger upgrade ready to install up to 400hp

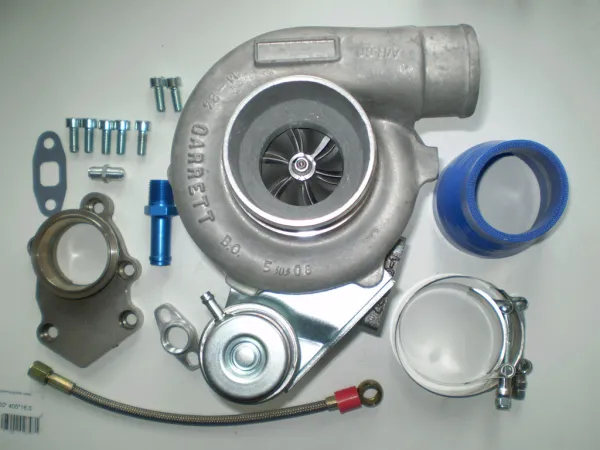

Scope of delivery:
1. Turbocharger Garrett GTX2860R 816364-5001S ball-bearing + water-cooled exhaust housing 64 A/R or 86 A/R please specify when ordering

---

2. Downpipe adapter compatible with the original downpipe

---

3. Oil inlet adapter/oil restrictor + oil line

---

4. Oil return flange with connection to the original return line

---

5. Silicone reducer 76>60mm

---

6. Clamps + Screws

---

Technical specifications turbocharger:
- Compressor housing external A/R 60
- Compressor wheel 60>45.7mm
- Turbine housing 64A/R
- double ball-bearing
- T25 flange (hole dimensions measured at center: 73x40mm)
- oil-cooled

---

- water-cooled
- Shaft is precision-balanced
- up to approx. 2 bar
- up to 400hp

---

Description:
The ball-bearing upgrade turbocharger Garrett GTX2860R is simply replaced by the original turbocharger. No modification work, no welding required. A special downpipe flange is included in the kit, which fits directly to the original downpipe. Due to the ball bearings, the turbo responds very early. The maximum power with this turbo is approx. 400hp, to reach this you also need larger injectors,  ø 70mm downpipe, a 255L/hr fuel pump, 100 cell cat, sports exhaust ø 70mm and upgraded intercooler. In order for the engine to withstand the power, steel connecting rods  and forged pistons are required. The engine management must then be adapted to the components.

---

Suitable for:
- all Fiat Coupe 20v Turbo 5 cylinder
