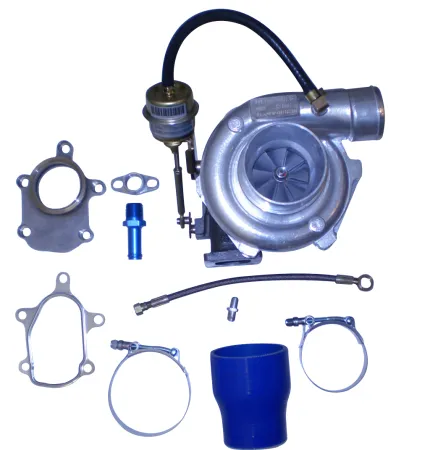

Turbo kit for Fiat Coupe 20v Turbo with GTR-2571 turbocharger upgrade ready to install up to 320hp

Scope of delivery:
  1x adapter 1/2 NPT > 16mm hose connection
  1x metal gasket for T25/T28 flange
  1x gasket for oil return GT
  1x HD wide-band clamp 87-79mm for 76mm silicone, stainless steel, 19mm wide
  1x straight silicone reducer 76x60mm inner diameter blue L 100mm 4-layer 5mm wall
  1x turbocharger GTR-2571R (GT25) 360hp T25 wastegate 60 A/R-49A/R 360° racing bearing
  2x copper gasket M12
  1x V2A flange for Fiat Coupe 20v on original downpipe with GTR-25 turbocharger
  1x ring eye M12 to D04
  1x retaining plate wastegate fresh air housing for GT28xx GT35 turbochargers
  1x HD wide-band clamp 71-63mm for 60mm silicone, stainless steel, 19mm wide
  1x adapter for oil feed on GT25 GTR-2871 3mm bore
  7x countersunk head bolt M8x20
  1x metal gasket for Y-pipe flange GTR-25, GTR-2571, GTR-2582 with 49A/R
  1x oil supply line D04 7/16 UNF 90° + D04 straight connectors 50cm PTFE Teflon
  1x flange for oil return for GT-R ball bearing turbos with 1/2 NPT internal thread

---

Technical data turbocharger:
- Compressor housing outer A/R 60
- Compressor wheel 71>54.13mm
- Turbine housing 49 A/R
- 360° racing bearing
- T25 flange (hole dimension measured centrally: 73x40mm)
- oil cooled

---

- water cooled
- shaft is finely balanced
- up to approx. 1.6 bar
- up to 360hp

---

Description:
The upgrade turbocharger GTR-2571 is simply replaced for the original turbocharger. No modification, no welding necessary. A special Y-pipe flange is included in the kit, which fits directly onto the original downpipe. Thanks to the small exhaust housing of 49A/R, it responds early.  The maximum output with this turbo is approx. 320hp; to achieve this, larger injectors, a 255L/h fuel pump and an upgrade intercooler must be used. The engine control unit must then be adapted to the components.

---

Fits:
- all Fiat Coupe 20v Turbo 5 cylinder.

---

Note: The above-mentioned turbocharger is intended for motorsport and does not correspond to any version approved by the manufacturer. If the installation changes the vehicle's performance data, the general operating permit and insurance cover will expire. Therefore, no warranty can be given. We also accept no liability for consequential damage.
