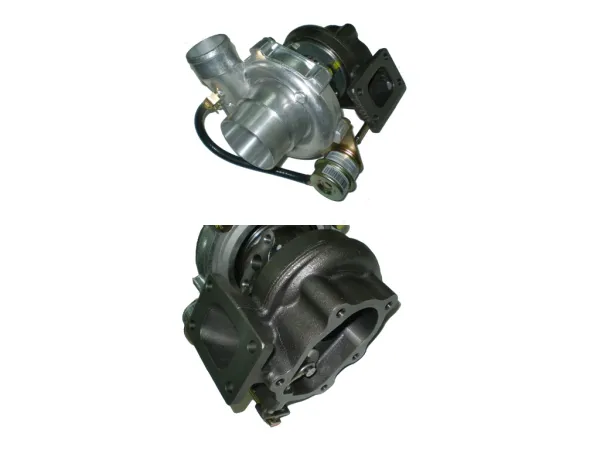

Turbocharger GTR-2571R (GT25) 360hp T25 Wastegate 60 A/R-49A/R 360° race mounted

Scope of delivery:
- Turbocharger GTR-2571 with internal wastegate
- Gasket T25 flange fitting
- Gasket for oil return

---

Technical data:
- Compressor housing outside 76mm A/R60
- Compressor wheel: 71>54mm
- Turbine housing 49 A/R
- Turbine wheel: 46mm
- T25 flange (hole dimensions measured in the center 73x40mm)
- oil-cooled
- internal wastegate

---

- water cooled

---

- 360° degree racing bearings (responds quickly and is more durable compared to turbochargers with 270° degree bearings)
- plain bearing
- Shaft is finely balanced
- with serial number (important for registrations)
- up to 1.8 bar
- up to 360hp

---

Description:
- Due to the small exhaust housing of 49A/R, the turbocharger is very well suited for small engines from 1.6L to 2L. It responds very early and makes real pressure in the upper revs through the 60A/R fresh air housing. This means that outputs of up to 360 hp at approx. 1.5 bar are possible with 1.8L or 2L engines.
- The fresh air housing, the center section and the exhaust housing can be rotated 360°. This means that the turbocharger can be rotated as required.

---

Suitable for:
- Engines from 1.6L to 2L
- e.g. G60, 1.8T, 1.8 and 2L 16v or 8v, Fiat Coupe 16v, Opel C20Let
