Turbo kit for Fiat Coupe 20v Turbo with Garrett GT2871R turbocharger upgrade ready to install up to 420hp

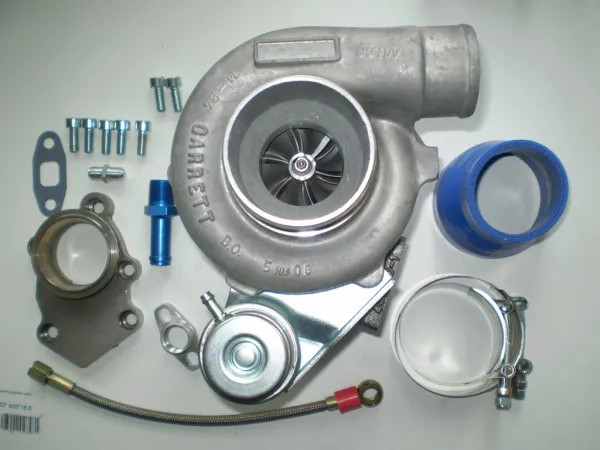

Scope of delivery:
1. Turbocharger Garrett GT2871R 743347-5002S / 5004S ball-bearing + water-cooled

---

2. Downpipe adapter compatible with the original downpipe

---

3. Oil inlet adapter/oil restrictor + oil line

---

4. Oil return flange with connection to the original return line

---

5. Silicone reducer 76>60mm

---

6. Clamps + screws

---

Technical specifications turbocharger:
- Compressor housing external A/R 60
- Compressor wheel 71>53.1mm
- Turbine housing 86 A/R
- double ball bearing
- T25 flange (hole dimensions measured at center: 73x40mm)
- oil-cooled

---

- water-cooled
- Shaft is precision-balanced
- up to approx. 2 bar
- up to 475hp

---

Description:
The ball-bearing upgrade turbocharger Garrett GT2871R is simply swapped for the original turbocharger. No modification work, no welding required. The kit contains a special downpipe flange that fits directly to the original downpipe. Thanks to the ball bearings, the turbo responds very early. The maximum output with this turbo is approx. 420hp; to achieve this, larger injectors,  ø 70mm downpipe, a 255 L/h fuel pump, 100-cell cat, sport exhaust ø 70mm and upgrade intercooler must be used. In order that the engine withstands the output, steel connecting rods  and forged pistons are required. The engine management must then be adapted to these components.

---

Compatible for:
- all Fiat Coupe 20v Turbo 5 cylinder.

---

Optional:
- Software 395hp + 399,- euros

---

Note: The above-mentioned turbocharger is intended for motorsports and does not correspond to any manufacturer-approved version. If installation alters the vehicle’s performance data, the general operating permit and insurance cover will be void. Therefore, no warranty can be given. We are also not liable for consequential damages.

---
