Turbo kit for Fiat Coupe 20v Turbo with Garrett GT28R GT2560R turbocharger upgrade ready to install up to 320hp

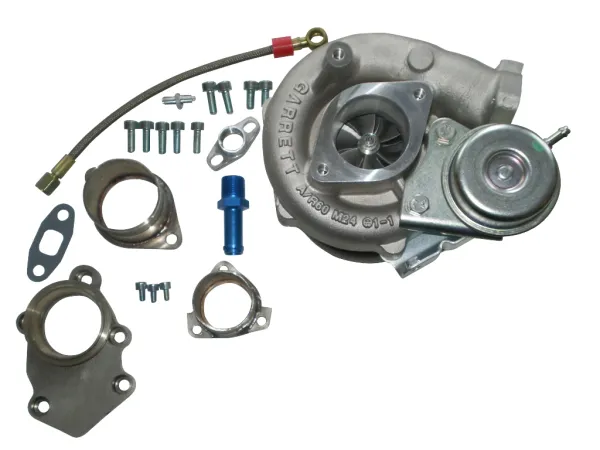

Scope of delivery:
1. Turbocharger Garrett GT2560R aka GT28R (466541-5001S) ball bearing + water cooled

---

2. Flange for air intake ø 60mm

---

3. Flange for air outlet ø 51mm

---

4. Y-pipe adapter suitable for the original Y-pipe

---

5. Oil inlet adapter

---

6. Oil return flange with connection to the original return line

---

7. Oil supply line made of steel flex

---

8. Wastegate internal + retaining plate

---

Technical data turbocharger:
- Exterior compressor housing A/R 60
- Compressor wheel 60>46.5mm
- Turbine housing 64 A/R
- Double ball bearing
- T25 flange (hole dimensions measured in the center: 73x40mm)
- Oil-cooled

---

- Water cooled
- Shaft is finely balanced
- Up to approx. 1.6 bar
- Up to 330hp

---

Description:
The ball bearing mounted upgrade turbocharger Garrett GT2560R is simply exchanged for the original turbocharger. No fitting work, no welding necessary. A special Y-pipe flange is included in the kit, which fits directly onto the original downpipe. Thanks to the ball bearings, the turbo responds very early, comparable to the original. The maximum output with this turbo is approx. 320hp, to achieve this, larger injectors, a 255 l/h fuel pump and an upgrade intercooler are required. The engine management must then be adapted to the components.

---

Suitable for:
- all Fiat Coupe 20v Turbo 5 cylinder.

---

Note: The above turbocharger is intended for motorsport and does not correspond to any manufacturer-approved version. If the installation changes the performance data of the vehicle, the general operating license and insurance cover will expire. A warranty can therefore not be accepted. We are also not liable for consequential damage.
