Intercooler kit for Audi A3, Golf 4 1.8T FMIC ø 51mm + ø 60mm

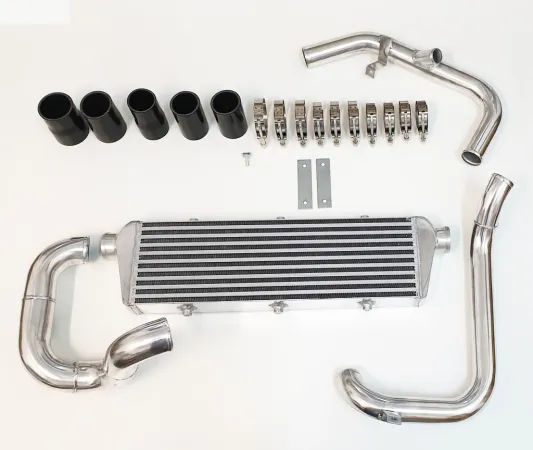

Scope of delivery: 1x charge air cooler 550x180x65mm aluminum - connections 57.5mm intercooler 1x clamp 22-32mm 2x clamp HD wide band clamp 75-67mm for 60-63.5mm silicone made of stainless steel 19mm wide 1x clamp HD wide band clamp 81-73mm for 70mm silicone made of stainless steel 19mm wide 4x clamp HD wide band clamp 62-54mm for 51mm silicone made of stainless steel 19mm wide 1x Quick Tap for silicone hose vacuum connection 6mm 1x clamp HD wide band clamp 37-32mm for 30-28-25mm silicone made of stainless steel 19mm 3x clamp HD wide band clamp 60-68mm for 57mm silicone made of stainless steel 19mm wide 1x silicone reducer straight 35x25mm inner diameter black L 100mm 3 ply 4mm Wa 1x silicone reducer straight 57x51mm inner diameter black L 100mm 4 ply 5mm Wa 1x silicone reducer straight 60x57mm inner diameter black L 100mm 4 ply 5mm Wa 1x silicone reducer straight 65x60mm inner diameter black L 100mm 4 ply 5mm Wa 2x silicone connector straight Ø 51mm black 4 ply 5mm wall thickness 1x silicone vacuum hose Ø 6mm length 1 meter black 2x holder 120x30x3mm for charge air cooler Kit S3 261113 + 2611115 1x charge air pipe 1 Ø 51mm for Kit 260159 1x charge air pipe 2 Ø 51mm for Kit 260159 1x charge air pipe 3 Ø 60mm for Kit 260159 with map sensor
- see also photos

---

Description:
- Ideal for tuned engines. With originally installed parts, up to approx. 10% more power. In connection with larger components such as injection nozzles, turbocharger, Y-pipe 76mm, etc., up to approx. 380hp sufficient.
- The kit was adapted on the vehicle, therefore a high accuracy of fit is provided

---

fits for:
- for Audi A3 8L 150+180hp FWD + Quattro
- for VW Golf 4 1.8T 150+180hp

---

only for vehicles in which the throttle valve is on the left side (standing in front of the car)
