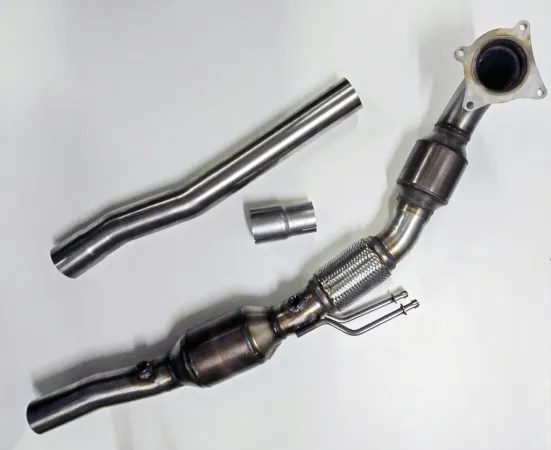

HJS downpipe 90 95 1105 2.0 TFSI for Golf 5 + 6 GTI GTI, Audi A3, Audi TT 2.0 TFSI 200 cell sports cat ø 70mm EC type approval (registration-free)

Scope of delivery:
- HJS downpipe 90 95 1105 2.0 TFSI for Golf 5 GTI, Golf 6 GTI, Audi A3, Audi TT 2.0 TFSI 200 cell sports cat ø 70mm EC type approval (registration-free)
- 3 clamps
- gasket
- Screw plug for lambda sensor

---

Description:
The ø 70mm downpipe significantly reduces back pressure, relieving the turbo, which in turn brings more power and lower exhaust gas temperature. The Y-pipe is made of stainless steel except for the flanges, which are made of steel so that they do not warp and thus prevent leaks. The flange surfaces are flat. There are 2 welded-in lambda sensor connections M18x1.5mm. The connecting pipe to the exhaust has ø 60mm as original, we can also supply this in 70mm or 76mm. Please specify when ordering.

---

The Y-pipe sits between the turbocharger and exhaust. An output of up to max. 400hp can be achieved; of course, all other components such as intake, exhaust system, injection nozzles, manifold, intercooler, turbocharger must be installed and the software adapted. The downpipe also fits upgrade turbochargers such as K04-064 plug & play; it is simply replaced 1:1 with the original.

---

suitable for:
- Audi A3 8P 2.0 TFSI FWD AXX, BPY, BWA, CAWB, CCZA 200hp
- Audi TT 8J 2.0 TFSI FWD 200hp, 211hp
- Seat Altea 5P  1.8 TFSI FWD 160hp
- Seat Altea 5P FR 2.0 TFSI FWD 200hp
- Seat Altea XL 5P 1.8 TFSI 155hp
- Seat Leon 1P 1.8 TSI 160hp BZB
- Seat Leon 1P 2.0 TFSI FWD 185hp BWA
- Seat Leon 1P 2.0 TFSI (FR) 200hp
- Seat Leon 1P 2.0 TSI CCZB 211hp
- Seat Leon 1P 2.0 TSI Cupra 240hp BWJ / CDLD
- Seat Leon 1P 2.0 TSI Cupra R 265hp CDLA
- Skoda Octavia 1Z 2.0 TFSI BWA, CAWB, CCZA 200hp
- VW Beetle 5C 2.0 TFSI 200hp
- VW Eos 2.0 TFSI FWD BWA, CAWB, CCZA 200hp, CCZB 211hp
- VW Golf 5 2.0 TFSI FWD AXX, BWA, BPY, CAWB, BYD 200-230hp
- VW Jetta 1KM 2.0 TFSI 200hp / 211hp
- VW Golf 6 2.0 TFSI GTI FWD CCZB 211hp
- VW Golf 6 2.0 TFSI GTI ED35 CDLG 235hp
- VW Scirocco 3 2.0 TFSI CAWB 200hp, CCZB 211hp, CDLA 265hp

---

Not for Quattro models

---
