Borgwarner KKK Borgwarner Turbocharger Upgrade Hybrid K04-064 for TFSI Audi S3, TTS, Golf 6 R GTI, Cupra R up to 420hp 53049880064

Scope of delivery: - Borgwarner KKK Borgwarner upgrade Hybrid K04-064 for TFSI Audi S3, TTS, Golf 6 R GTI, Cupra R up to 420PS 53049880064
- the Borgwarner turbochargers are proven to come from a German Borgwarner representative, therefore all 100% original.

---

Description:
5304988064 Racing turbocharger

---

milled compressor wheel based on K24 specification K16/2480

---

Compressor wheel with high flow rate and extended tip to 30°

---

Special 360° racing axial thrust bearing

---

Rotor grinding to 14° (weight reduction possible)

---

optimized pressure can opens at 0.9 bar

---

adapted, revised compressor housing

---

boost pressure up to 2 bar

---

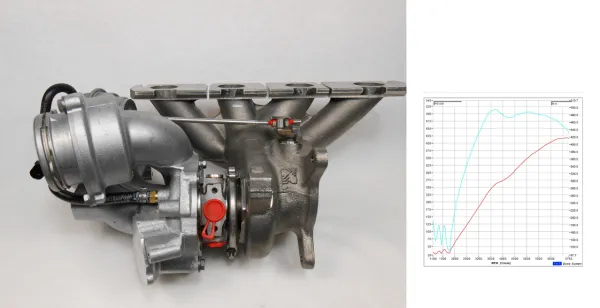

Performance up to 420PS see performance diagram

---

For vehicles without a noise amplifier, a throttle pipe must also be installed with the appropriate connection in order to install the SUV conversion kit.

---

 suitable for:
- Audi A3 8P 2.0 TFSI 200hp engine code AXX/CCZ
- Audi S3 8P 2.0 TFSI 265Ps 8P 8PA engine code BHZ / CDLA
- Audi TTS 8J 2.0 TFSI 272hp engine code BHZ
- Seat Leon 1P 2.0 TFSI 240-265PS BWJ / CDLD / CDLA
- VW Golf 5 2.0 TFSI 200-230hp engine code AXX / BYD
- VW Golf 6 GTI 2.0 TFSI 211PS engine code CCZB EA888 (select option "EA888" when ordering)*
- VW Golf 6 GTI 2.0 TFSI 211hp engine code CDLG (EA113)
- VW Golf 6 R 2.0 TFSI 270PS engine code CDLA
- VW Scirocco III 137 2.0 TSI 211PS Engine code CAWB, CCZB EA888 (Select option "EA888" when ordering)*
-  VW Scirocco R III  137 2.0 TSI 265PS Engine code CDLA

---

*The divert-air valve must be relocated with this kit. For vehicles with noise amplifier, this pressure pipe must be used and a ø 25mm outlet must be made for the SUV on the intake pipe between the air filter and turbo.

---

Optional matching parts:
Mounting kit incl. gaskets for turbocharger 2.0 TFSI EA113 + EA888 engines VAG

---
