Product description
Scope of delivery:

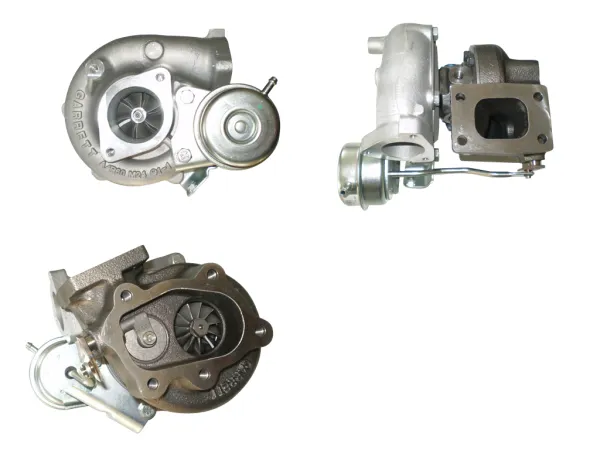

- Turbocharger original Garrett GT2560R
Technical data:
- Fresh air housing 60A/R - Trim 60
- Turbine housing 64A/R - Trim 62
- oil-cooled
- water-cooled
- double ball bearing
- Part no. 466541-5001S replaced by 836023-5003S
- up to 200-330hp
Suitable for:
- Engines with displacement from 1.6L to 2.5L
Description:
With us you receive an original Garrett turbocharger. We source these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out etc.
The Garrett GT and GTX series are all double ball bearing mounted, finely balanced and oil- and water-cooled. There is still the older generation T series, which are mostly plain bearing mounted. The GTX series differs from the normal GT in that they have a special, larger compressor wheel with several blades, which leads to more power and slightly better response. It is important with the ball bearing turbochargers, that they do not get too much oil pressure. Therefore, an oil restrictor with a 0.9mm bore is used for the oil inlet. A ball bearing turbo responds about 400-500 rpm earlier than a plain bearing one. When selecting the right turbocharger ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. All details such as exhaust housing options, product description, performance map and drawings can be found there.
- Turbocharger original Garrett GT2560R
Technical data:
- Fresh air housing 60A/R - Trim 60
- Turbine housing 64A/R - Trim 62
- oil-cooled
- water-cooled
- double ball bearing
- Part no. 466541-5001S replaced by 836023-5003S
- up to 200-330hp
Suitable for:
- Engines with displacement from 1.6L to 2.5L
Description:
With us you receive an original Garrett turbocharger. We source these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out etc.
The Garrett GT and GTX series are all double ball bearing mounted, finely balanced and oil- and water-cooled. There is still the older generation T series, which are mostly plain bearing mounted. The GTX series differs from the normal GT in that they have a special, larger compressor wheel with several blades, which leads to more power and slightly better response. It is important with the ball bearing turbochargers, that they do not get too much oil pressure. Therefore, an oil restrictor with a 0.9mm bore is used for the oil inlet. A ball bearing turbo responds about 400-500 rpm earlier than a plain bearing one. When selecting the right turbocharger ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. All details such as exhaust housing options, product description, performance map and drawings can be found there.
