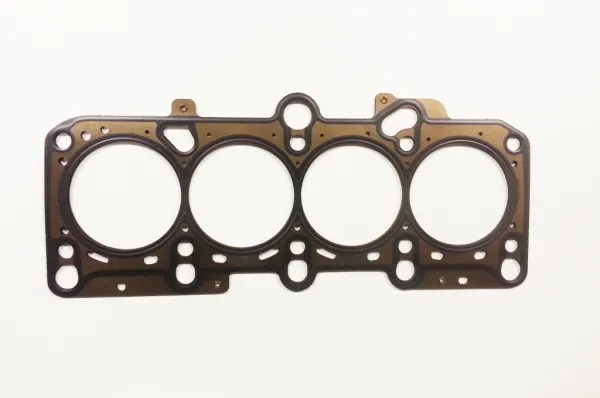

Metal cylinder head gasket with compression ratio reduction 8.46:1 to 8.89:1 for Audi / Seat / Skoda / VW 1.8T Elring / Reinz

Scope of delivery:
- Metal cylinder-head gasket with compression reduction for Audi / Seat / Skoda / VW 1.8T Elring / Reinz

---

Description:
The special multi-layer metal cylinder-head gasket (multi-layer steel) has a thicker and coated intermediate plate. This means that the compression is already reduced. The original has 1.22mm and the current one 2mm. The gasket is from Elring or Reinz and the intermediate plate is a custom-made product.

---

The new compression ratio varies depending on the engine code:

---

Bore diameter 82mm

---

(Attention only for 1.8T with performance increase or planned cylinder head for compensation!

---

1.8T with basic compression ratio 9.5:1Compression ratio 8.89:1 with total thickness 2mm

---

1.8T with basic compression ratio 9.0:1 (e.g. AMK, AMU, APX, APY, BAM)Compression ratio 8.46:1 with total thickness 2mm

---



---

suitable for:
- ADR, AEB, AFY, AGN, AGU, AJH, AJL, AJQ, AMB, AMK, AMU,ANB, APG, APH, APP, APT, APU, APX, APY, AQA, AQJ, AQX,ARG, ARK, ART, ARX, ARY, ARZ, ATC, ATW, AUG, AUL, AUM,AUM, AUQ, AVC, AVJ, AVV, AWC, AWD, AWM, AWP, AWT, AWU,AWV, AWW, AYP, BAF, BAM, BBU, BE , BEK, BEX, BFB, BFV,BJX, BKB, BKF, BKV, BLZ, BNU, BVP, BVR, CFMA, GU, VER
