Intercooler kit for Golf 5, Golf 6, Audi A3 S3, Seat Leon Passat B6, 2.0 TFSI Double-DIN 56mm plug and play incl. parts certificate (§19.3)

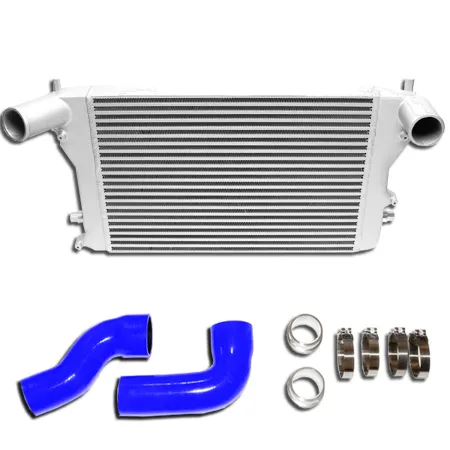

Scope of delivery: - Intercooler kit for Golf 5 Audi A3 S3 Seat Leon Passat B6 2.0 TFSI Double-DIN 56mm plug and play incl. parts certificate (§19.3) in silver
- 2 silicone hoses blue
- 2 aluminum connectors

---

Technical data:
- cast aluminum boxes
- Bar&Plate mesh
- mesh size 610x440x56mm
- overall dimensions with boxes 870x440x175

---

Info on TÜV registration:
- the intercooler can be registered in conjunction with other approved tuning parts

---

suitable for:
Audi A3 (8P) incl. S3
1.8l TFSI  / 2.0l TFSI / 2.0l TDI
118kW / 147kW / 195kW
103kW /125KW
engine code: CDAA+CCZA+CDLA+CFFB+GFGB

Audi TT (8J) incl. TTS
1.8l TFSI / 2.0l TFSI /2.0l TDI
118kW / 147kW / 200kW / 125kW
engine code: CDAA+CCZA+CDLB+CFGB

Seat Leon (1P) incl. Cupra / Cupra R
2.0l TFSI / 2.0l TDI
135kW / 147kW / 155kW / 177kW / 195kW
103kW /125KW
engine code: BWA+CCZB+CDLD+CDLA+BWJ+CFHC+CFJA

Skoda Octavia (1Z)
1.8l TSI / 2.0 TFSI/TSI / 2.0l TDI
118kW / 147kW / 81kW / 103kW / 125kW
engine code: CDAA+CCZA+CFHF+CFHC+CEGA

Skoda Superb (3T)
2.0l TSI  / 2.0l TDI
147kW / 103kW / 125kW
engine code: CCZA+CFFB+CFGB

VW Golf V+VI (1K)
1.4l TSI / 2.0l TSI / 2.0 TFSI/ 2.0l TDI
103kW / 118kW / 147kW / 155kW / 169KW / 199kW
103kW / 125kW /
engine code: BMY+BYD+AZV+CTHD+CAVD+CCZB+CDLF+CFFB+CFGB

---

VW Jetta III+IV (1KM/16(16H)
1.4l TSI / 2.0l TSI / 2.0l TDI
103kW / 118kW / 147kW / 155kW
engine code: BMY+AZV+CTHD+CAVD+CPLA+CFFB

VW Eos (1F)
1.4l TSI / 2.0l TSI / 2.0l TDI
103kW / 118kW / 147kW / 155kW
engine code: BWA+CTHD+CAVD+CCZB+CFFB

VW Passat (3C / 3CC)
1.8l TSI  / 2.0l TFSI/TSI  / 2.0l TDI
engine code: CDAA+CCZB+BWA+CFFB
103kW / 118kW / 147kW / 155kW

VW Scirocco III (13)
1.4l TSI / 2.0l TSI / 2.0l TDI
118kW / 155kW / 195kW
103kW / 125kW
engine code: CAVD+CCZB+CDLA+CFHC+CFGB+CULA

---

Description:
The upgrade intercooler is installed in the front, between the turbocharger and the intake manifold. It is simply exchanged 1:1 for the original. The purpose of an intercooler is to cool down the air heated by the turbocharger. By cooling down the compressed air, more air mass enters the combustion chamber at the same volume, allowing more fuel to be burned, thus increasing the power and efficiency. The lower the charge air, the lower the thermal load on the engine and turbocharger because it needs less speed for the same air mass. Fuel consumption is also reduced and the engine gets slightly better exhaust values, provided that the control unit is adapted for this. It is important to make sure that the intercooler gets as much airflow as possible. The coolers can be used for charged diesel and petrol engines. The intercooler offered here is made entirely of aluminum with cast boxes and has a bar'n plate mesh, ideal for motorsport and tuning. Each intercooler is tested up to 5 bar before delivery.

---
