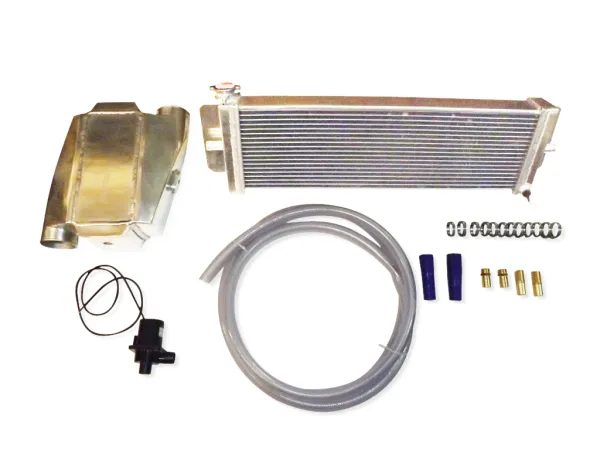

Scope of delivery:
2x adapter 1/2 NPT > hose connection 19mm
1x intercooler water-cooled up to 650hp 76mm connections turned water-cooled
12x clamp 20-32mm
2x silicone reducer straight 25x19mm inner diameter blue L 100mm 3-ply 4mm walls
1x water pump 12v 900L/hour connections 25mm
1x water cooler for water-cooled charge air system 800x170x70mm
2x aluminum pipe connector ø 19mm - L 80mm - 1.5mm wall thickness flanged
3x water hose inner diameter 19mm -40°C to +100°C black
- see also photo
Technical data water-cooled intercooler:
- 76mm connections for charge air pipes
- External dimensions: L 30.50 x W 30.50 H 11.5 cm
- Net dimensions: L 26 x W 12 x H 11 cm
- Water connections 1/2 inch
- designed for up to 5 bar boost pressure
- Water cooling lowers the charge air temperature by more than 30°C compared to conventional charge air coolers. This results in a 10% increase in power at the same boost pressure. The response behavior is more aggressive, as the charge air paths are short.
Technical data:
- Overall dimensions L 800mm x H 170mm x W 70mm
- Net dimensions L 600mm x H 150mm x W 63.5mm
- 2x 3/4 inch (19mm) water connections
Suitable for:
- any turbo conversions e.g. Audi TT, S3, S2, BMW M3, M5, VW 16v, VR6, V6, R32, Honda Civic/Integra/DelSol/CRX etc.
Description:
The water-cooled charge air system is installed between the turbocharger and the intake manifold. The aim of an intercooler is to cool down the air heated by the turbocharger. By cooling down the compressed air, more air mass enters the combustion chamber with the same volume and more fuel can be burned, which increases the power output and efficiency. The lower the charge air, the lower the thermal load on the engine, the turbocharger because it requires less speed for the same air mass. Fuel consumption is also reduced and the engine achieves slightly better exhaust values, provided the control unit is adapted accordingly. For intercoolers with water cooling, it is important that the largest possible water cooler with pump is installed. The coolers can be used for turbocharged diesel and petrol engines. When selecting the intercooler, care should be taken to ensure that it is not too large for the engine, as this would impair the response behavior, and it should not be too small either. The water-cooled intercooler offered here is made entirely of aluminum with cast boxes and has a bar'n plate mesh, ideal for motorsport and tuning. Each intercooler is tested up to 5 bar before delivery.
2x adapter 1/2 NPT > hose connection 19mm
1x intercooler water-cooled up to 650hp 76mm connections turned water-cooled
12x clamp 20-32mm
2x silicone reducer straight 25x19mm inner diameter blue L 100mm 3-ply 4mm walls
1x water pump 12v 900L/hour connections 25mm
1x water cooler for water-cooled charge air system 800x170x70mm
2x aluminum pipe connector ø 19mm - L 80mm - 1.5mm wall thickness flanged
3x water hose inner diameter 19mm -40°C to +100°C black
- see also photo
Technical data water-cooled intercooler:
- 76mm connections for charge air pipes
- External dimensions: L 30.50 x W 30.50 H 11.5 cm
- Net dimensions: L 26 x W 12 x H 11 cm
- Water connections 1/2 inch
- designed for up to 5 bar boost pressure
- Water cooling lowers the charge air temperature by more than 30°C compared to conventional charge air coolers. This results in a 10% increase in power at the same boost pressure. The response behavior is more aggressive, as the charge air paths are short.
Technical data:
- Overall dimensions L 800mm x H 170mm x W 70mm
- Net dimensions L 600mm x H 150mm x W 63.5mm
- 2x 3/4 inch (19mm) water connections
Suitable for:
- any turbo conversions e.g. Audi TT, S3, S2, BMW M3, M5, VW 16v, VR6, V6, R32, Honda Civic/Integra/DelSol/CRX etc.
Description:
The water-cooled charge air system is installed between the turbocharger and the intake manifold. The aim of an intercooler is to cool down the air heated by the turbocharger. By cooling down the compressed air, more air mass enters the combustion chamber with the same volume and more fuel can be burned, which increases the power output and efficiency. The lower the charge air, the lower the thermal load on the engine, the turbocharger because it requires less speed for the same air mass. Fuel consumption is also reduced and the engine achieves slightly better exhaust values, provided the control unit is adapted accordingly. For intercoolers with water cooling, it is important that the largest possible water cooler with pump is installed. The coolers can be used for turbocharged diesel and petrol engines. When selecting the intercooler, care should be taken to ensure that it is not too large for the engine, as this would impair the response behavior, and it should not be too small either. The water-cooled intercooler offered here is made entirely of aluminum with cast boxes and has a bar'n plate mesh, ideal for motorsport and tuning. Each intercooler is tested up to 5 bar before delivery.
