water-cooled charge air system up to 650hp 76mm connections intercooler

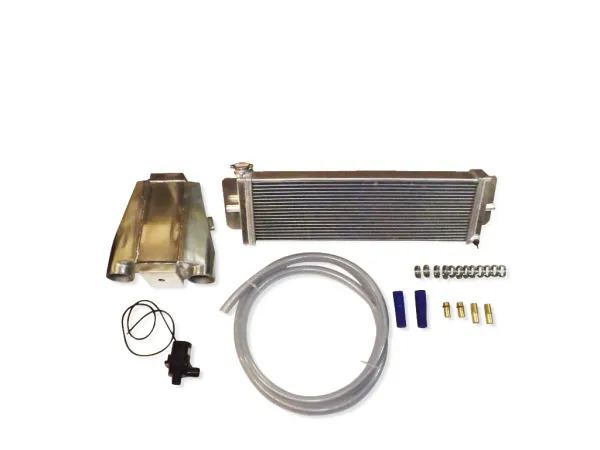

Scope of delivery:

  2x adapters: 1/2 NPT > 19 mm hose connection
  1x Water-Cooled Intercooler up to 650PS with 76mm Connections
  12x Clamps 20–32 mm
  2x straight silicone reducers, 25x19 mm inner diameter, blue, L 100 mm, 3-ply, 4 mm wall thickness
  1x Water Pump 12V 900 L/hr, 25 mm connections
  1x Water Cooler for Water-Cooled Intercooler System 800x170x70mm
  2x aluminum tube connectors, 19 mm diameter – 80 mm long – 1.5 mm wall thickness, flared
  3x water hoses, inner diameter 19 mm, -40°C to +100°C, black
- see also photo

Technical Specifications for Water-Cooled Intercoolers:
- Overall dimensions: L 695 mm x H 170 mm x W 65 mm
- Dimensions: L 600 mm x H 150 mm x W 63.5 mm
- 2x 3/4-inch (19 mm) water connections
- 1/2 20UNF
- Rated for up to 6 bar boost pressure
- Thanks to the water cooling, the charge air is cooled by more than 30°C compared to conventional intercoolers. This resultsin a 10% increase in power at the same boost pressure. The throttle response is more aggressive because the charge air pathways are short.

Suitable for:
- Any turbo conversions, e.g., Audi TT, S3, S2, BMW M3, M5, VW 16v, VR6, V6, R32, Honda Civic/Integra/DelSol/CRX, etc.

Description:
The water-cooled intercooler is installed between the turbocharger and the intake manifold. The purpose of an intercooler is to cool down the air heated by the turbocharger. By cooling the compressed air, more air mass enters the combustion chamber at the same volume, allowing more fuel to be burned, which increases power and efficiency. The cooler the charge air is, the lower the thermal load on the engine and the turbocharger, because the turbocharger requires a lower rotational speed for the same air mass. Fuel consumption is also reduced, and the engine achieves slightly better emissions, provided the control module is adjusted accordingly. Care should be taken to ensure that the intercooler receives as much airflow as possible. These intercoolers can be used with turbocharged diesel and gasoline engines. When selecting an intercooler, care should be taken to ensure that it is not too large for the engine, as this will impair throttle response; nor should it be too small. The intercooler offered here is made entirely of aluminum with cast housings and features a bar-and-plate core, making it ideal for motorsports and tuning. Every intercooler is tested up to 5 bar before shipment.
