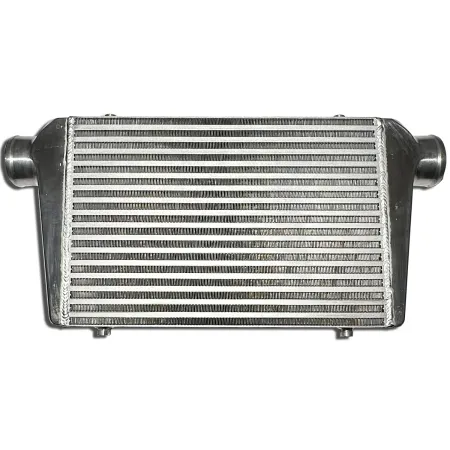

Intercooler 450x300x76mm aluminum 76mm connections intercooler

Scope of delivery:
- Intercooler 450x300x76 made of aluminum up to 5 bar

---

Technical data:
- Overall dimensions L 630mm x H 300mm x W 76mm
- Net dimensions L 450mm x H 300mm x W 76mm
- 2x connections 76mm (3")
- Charge pressures up to 5 bar
- Fastening connections 5x M8

---

Suitable for:
- Turbo engines from 1.5L to 4L

---

Description:
The intercooler is installed between the turbocharger and the intake manifold. The aim of an intercooler is to cool down the air heated by the turbocharger. By cooling down the compressed air, more air mass enters the combustion chamber with the same volume and more fuel can be burned, thereby increasing the power output and efficiency. The lower the charge air, the lower the thermal load on the engine, the turbocharger, because it requires less speed for the same air mass. Fuel consumption is also reduced and the engine achieves slightly better exhaust values, provided the control unit is adapted accordingly. It is important to ensure that the intercooler gets as much airflow as possible. The coolers can be used on turbocharged diesel and petrol engines. When selecting the intercooler, care should be taken to ensure that it is not too large for the engine, as this would impair the response behavior, and it should not be too small either. The intercooler offered here is made entirely of aluminum with cast boxes, has five mounting points with M8 threads and a bar'n plate mesh, ideal for motorsport and tuning. Each intercooler is tested to 5 bar before delivery.
