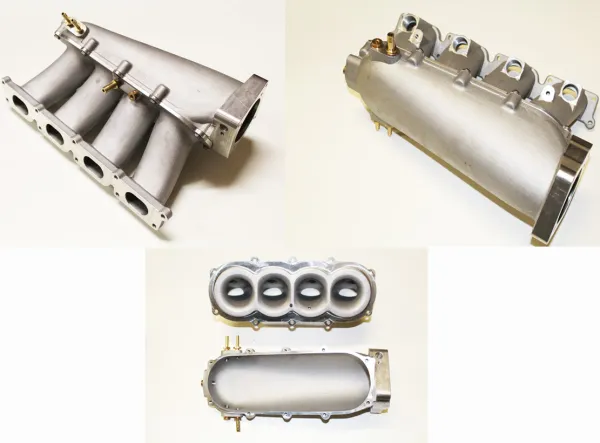

Intake manifold for VAG 1.8T A3, S3, Seat Leon Cupra R, Golf 4 for transverse mounted engines

Scope of delivery:
- Intake manifold suitable for all transversely mounted engines of the VAG: e.g. 1.8T A3, S3, Seat Leon Cupra R, Golf 4, Audi TT

---

Technical data:

---

---

- 2-piece version - made of cast aluminum TOP quality- interchangeable with the original intake manifold (modifications to the boost pressure pipe required)- CFD technology - specially developed for the 1.8T engines - sealing surfaces planned- the throttle valve can be mounted on either the right or left - cast-in funnels for optimum airflow- suitable for 1.8T throttle bodies and RS4 type B5 throttle bodies, bolt patterns available on the flange - suitable for up to 6 bar boost pressure- channels in small-port (can be converted to big port with some effort)- up to 1000hp

Connections:
2x M10 to 5mm --> length 17mm
2x M10 to 10mm --> length 17mm
2x M10 plugs

---

* Note * For the injection nozzle holes 4x the VW part no. 058133555 must be ordered from VAG.

---

Suitable for:
- all transversely mounted 1.8T VAG engines.
- Audi A3 8L 1.8T
- Audi S3 8L 1.8T
- Seat Ibiza 6K 1.8T
- Seat Leon 1M1 + Cupra R 1.8T
- VW Golf 4 1.8T
