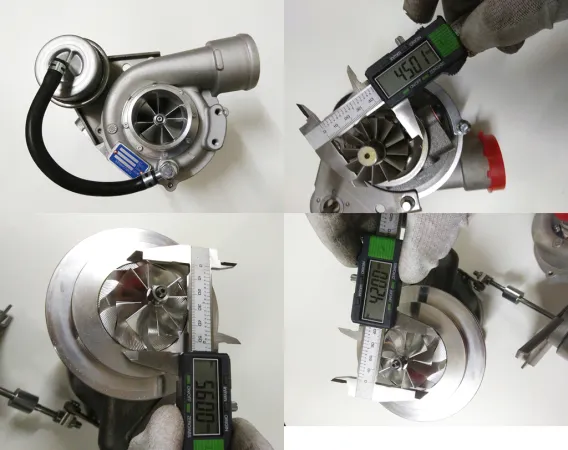

Turbocharger K04-015 for Audi A4, A6 1.8T, Passat 1.8T up to 240hp

Scope of delivery: - K04-015 turbocharger for Audi A4, A6 1.8T, Passat 1.8T up to 240hp

---

Description:
- the turbocharger is installed in the longitudinally mounted Audi / Seat / VW 1.8T engines such as Audi A4 B5 1.8T or Passat 3B 1.8T. The supercharger fits 1:1 and is replaced with the original. All connections are as original, except the turbo inlet is slightly larger. The software must be adapted to the turbo. To achieve an output of approx. 240hp, the following must be installed:

---

Silicone intake hose with 50mm inlet 380905 or 380906, 380cc injectors, intercooler kit, upgrade manifold, 200 cell sports catalyst, min. 63.5mm downpipe  and exhaust system. With the correct ECU adaptation, up to 240hp are possible.

---

Please note that after replacing the supercharger, the oil supply and return lines must be replaced. These can be obtained from your VAG dealer.

---

suitable for:
- Audi A4 1.8T with engine code AEB,APU,ARK, ANB, AJL, BFB, BEX, AVJ
- Audi A6 1.8T with engine code AEB,APU,ARK,ANB,AJL
- Passat 1.8T with engine code AEB, APU, ARK, ANB, AWT
- also for small turbo conversions up to 1.8L such as G40, Fiat Punto/Uno Turbo, etc.
