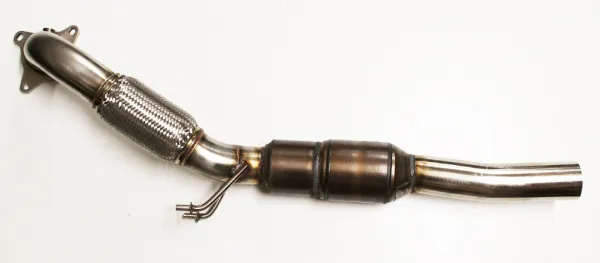

FMS Downpipe 2.0 TFSI for Golf 5 GTI, Golf 6 GTI, Audi A3, Audi TT 2.0 TFSI 200 cells HJS Sportkat ø 76mm parts certificate

Scope of delivery:
- Downpipe 2.0 TFSI for Golf 5 GTI, Golf 6 GTI,  Audi A3, Audi TT 2.0 TFSI 200 cell HJS sports cat ø 76mm parts certificate
- Image similar

---

Description:
The ø 76mm downpipe significantly reduces back pressure, relieving the turbo which in turn provides more power and lower exhaust gas temperature. The Y-pipe is made from stainless steel except for the flanges, which are made from steel so they do not warp and thus prevent leaks. The flange surfaces are machined. There are 2 lambda sensor ports M18x1.5mm welded in. The connection pipe to the exhaust has ø 60mm as original, we can also provide this in 70mm or 76mm, please specify when ordering.

---

The Y-pipe fits between the turbocharger and the exhaust. Power can be run up to max. 400hp, of course other components such as intake system, exhaust system, injectors, manifold, intercooler, turbocharger must also be installed and the software adapted accordingly. Upgrade turbochargers like K04-064 plug & play also fit the downpipe. It is simply swapped 1:1 with the original.

---

A parts certificate according to § 19.3 StVZO is included for trouble-free registration with TÜV or Dekra.

---

suitable for:
- Audi A3 8P 2.0 TFSI FWD AXX, BPY, BWA, CAWB, CCZA 200hp
- Audi TT 8J 2.0 TFSI FWD 200hp, 211hp
- Seat Altea 5P  1.8 TFSI FWD 160hp
- Seat Altea 5P FR 2.0 TFSI FWD 200hp
- Seat Altea XL 5P 1.8 TFSI 155hp
- Seat Leon 1P 1.8 TSI 160hp BZB
- Seat Leon 1P 2.0 TFSI FWD 185hp BWA
- Seat Leon 1P 2.0 TFSI (FR) 200hp
- Seat Leon 1P 2.0 TSI CCZB 211hp
- Seat Leon 1P 2.0 TSI Cupra 240hp BWJ / CDLD
- Seat Leon 1P 2.0 TSI Cupra R 265hp CDLA
- Skoda Octavia 1Z 2.0 TFSI BWA, CAWB, CCZA 200hp
- VW Beetle 5C 2.0 TFSI 200hp
- VW Eos 2.0 TFSI FWD BWA, CAWB, CCZA 200hp, CCZB 211hp
- VW Golf 5 2.0 TFSI FWD AXX, BWA, BPY, CAWB, BYD 200-230hp
- VW Jetta 1KM 2.0 TFSI 200hp / 211hp
- VW Golf 6 2.0 TFSI GTI FWD CCZB 211hp
- VW Golf 6 2.0 TFSI GTI ED35 CDLG 235hp
- VW Scirocco 3 2.0 TFSI CAWB 200hp, CCZB 211hp, CDLA 265hp

---

Not for Quattro models

---
