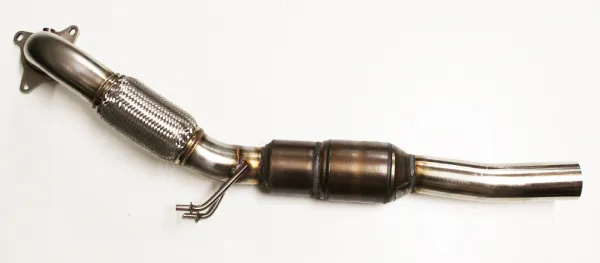

FMS downpipe 2.0 TFSI for Golf 5 GTI, Golf 6 GTI, Audi A3, Audi TT 2.0 TFSI 200 cells HJS sports cat ø 76mm EC type approval (registration-free)

Scope of delivery:
- Downpipe 2.0 TFSI for Golf 5 GTI, Golf 6 GTI, Audi A3, Audi TT 2.0 TFSI 200 cells HJS sports cat ø 76mm EC type approval (registration-free)
- Picture similar

---

Description:
The ø 76mm downpipe significantly reduces the back pressure, relieving the turbo, which in turn gives more power and lowers exhaust gas temperature. The Y-pipe is made of stainless steel except for the flanges, which are made of steel so that they do not warp and thus prevent leaks. The flange surfaces are planed. There are 2 lambda probe connections M18x1.5mm welded in. The connecting pipe to the exhaust has ø 60mm as original, we can also supply this in 70mm or 76mm, please specify when ordering.

---

The Y-pipe sits between the turbocharger and the exhaust. An output of up to max. 400hp can be achieved; of course, the other components such as intake, exhaust system, injection nozzles, manifold, intercooler, turbocharger must also be installed and the software adapted accordingly. Upgrade turbochargers such as K04-064 plug & play also fit the downpipe – it is simply exchanged 1:1 for the original.

---

suitable for:
- Audi A3 8P 2.0 TFSI FWD AXX, BPY, BWA, CAWB, CCZA 200hp
- Audi TT 8J 2.0 TFSI FWD 200PS, 211PS
- Seat Altea 5P  1.8 TFSI FWD 160PS
- Seat Altea 5P FR 2.0 TFSI FWD 200PS
- Seat Altea XL 5P 1.8 TFSI 155PS
- Seat Leon 1P 1.8 TSI 160PS BZB
- Seat Leon 1P 2.0 TFSI FWD 185PS BWA
- Seat Leon 1P 2.0 TFSI (FR) 200PS
- Seat Leon 1P 2.0 TSI CCZB 211PS
- Seat Leon 1P 2.0 TSI Cupra 240PS BWJ / CDLD
- Seat Leon 1P 2.0 TSI Cupra R 265PS CDLA
- Skoda Octavia 1Z 2.0 TFSI BWA, CAWB, CCZA 200PS
- VW Beetle 5C 2.0 TFSI 200PS
- VW Eos 2.0 TFSI FWD BWA, CAWB, CCZA 200PS, CCZB 211PS
- VW Golf 5 2.0 TFSI FWD AXX, BWA, BPY, CAWB, BYD 200-230hp
- VW Jetta 1KM 2.0 TFSI 200PS / 211PS
- VW Golf 6 2.0 TFSI GTI FWD CCZB 211PS
- VW Golf 6 2.0 TFSI GTI ED35 CDLG 235PS
- VW Scirocco 3 2.0 TFSI CAWB 200PS, CCZB 211PS, CDLA 265PS

---

Not for Quattro models

---
