Turbo kit for Fiat Punto GT 1.4 with GT2871 turbocharger + downpipe up to 320hp

Scope of delivery:

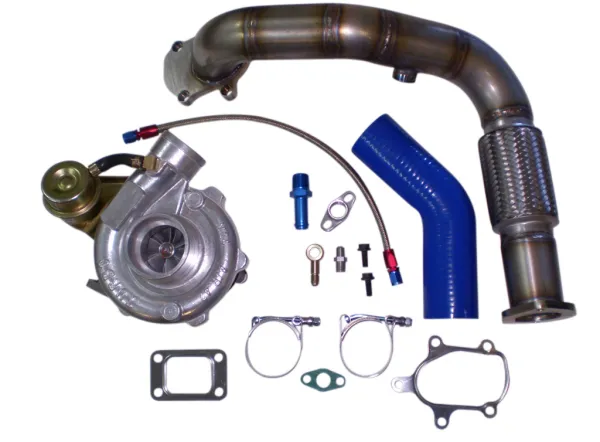

Turbo kit for Fiat Punto GT 1.4 with GT2871 turbocharger + downpipe up to 320 hp

---

  1x Turbocharger GTR-2871R (GT28) 400 hp T25 wastegate 60 A/R-64A/R 360° racing bearings 440147  1x Adapter 1/2 NPT > 16 mm hose connection  1x Adapter for oil inlet on GT25 GTR-2571 GTR-2871 3mm bore  1x Aluminum tube connector ø 60mm - L 80mm - 1.5mm wall thickness, flared  1x Gasket for oil return GT  1x Metal gasket for Y-pipe flange GTR-25, GTR-2571, GTR-2582 with 49A/R  1x metal gasket for T25/T28 flange  1x flange for oil return for GT-R ball-bearing turbos GT28, GT28RS, GT2871R, GT30  1x Downpipe Y-pipe  ø 60mm for Fiat Punto GT with GTR-25 turbocharger, stainless steel  1x PTFE oil supply line 50cm for 90° 7/16 UNF, other end ring eye ø 10mm  1x silicone elbow reducer 45° 51>41mm inner diameter, blue, L 125mm, 5mm wall thickness  1x straight silicone reducer 76x60mm inner diameter, blue, L 100mm, 4-ply, 5mm wall thicknessTechnical Specifications Turbocharger:
- Compressor housing, external A/R 60
- Compressor wheel 71>54.13 mm
- Turbine housing 49 A/R
-  360° racing bearings
- T25 flange (hole dimensions measured at center: 73x40mm)
- oil-cooled

---

- water-cooled
- Shaft is precision-balanced
- up to approx. 1.8 bar
- up to 360 hp

---

Fits:
- All Fiat Punto GT 1.4 Turbo models. The old turbo is replaced with the new one. Minor modifications are required, but no welding is necessary. The turbo is capable of delivering up to approx. 260 hp in the Punto GT 1.4, though the software must be adjusted for this.
