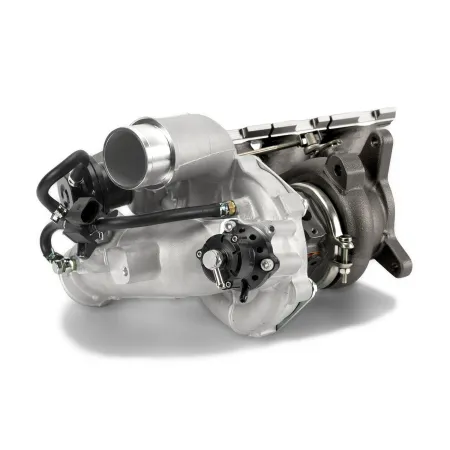

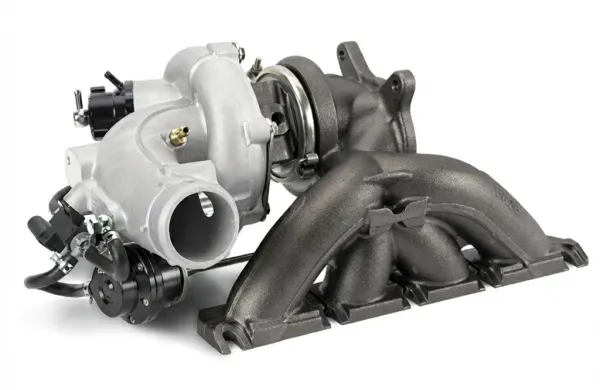

K04-064 Hybrid GEN II Turbocharger Upgrade for 2.0 TFSI EA888 Audi S3, TTS, Golf 6 R GTI, Cupra R up to 400PS 53049880064 ball-bearing mounted

Included:
- K04-064 Hybrid GEN II Turbocharger Upgrade for 2.0 TFSI EA888 Audi S3, TTS, Golf 6 R GTI, Cupra R up to 400 PS 53049880064 with ball bearings

Description:
- K04-064 Upgrade Turbocharger / 5304988064 for EA888 engines

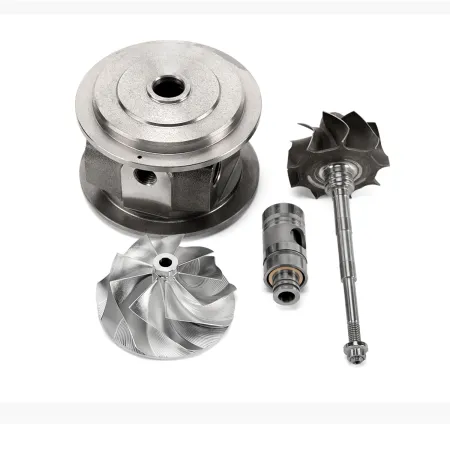

- CHRA: High-quality dual ceramic ball bearings - 15% faster response than conventional bearings
- Machined billet aluminum supercharger impeller - 9 blades
- precision-balanced
- Compressor impeller: 67>54 mm
- Turbine wheel 54×49 mm
- Approx. 400 PS
- Integrated oil pressure reduction: Oil and water connections in OEM format
- High-quality pressure canister
- Includes accessories: see photo

For vehicles without a sound amplifier, a throttle pipe with the appropriate connection must also be installed in order to install the SUV conversion kit.

EA888 engines and associated vehicles

AXX / CCZ – 2.0 TFSI ~200 PS (EA888 Gen 1/2)

• Audi A3 8P 2.0 TFSI 200 PS – AXX / CCZ

• Audi A3 Sportback / Cabrio (8P) – CCZA / CAWB / CBFA

• Audi TT (8J) 2.0 TFSI ~200 PS – CCZA / CAWB / CBFA

• VW Golf V/V Variant 2.0 TFSI 200 PS – CCZ / CAWB

• VW Jetta 2.0 TFSI ~200 PS – CCZA / CAWB / CBFA

• VW Passat B6 / Passat CC 2.0 TFSI 147–200 PS – AXX / CCZA / CAWB / CBFA

• VW Eos 1F / 1F8 2.0 TFSI 200–211 PS – CCZA / CAWB / CCZB

• Seat Altea / Seat Leon 1P 2.0 TSI ~200–211 PS – CCZB / CCZA

• Skoda Octavia / Superb (EA888 series) – 2.0 TSI/TSI variants CCZA / CCZB / CAWB
  (Note: CCZA / CAWB / CBFA appear in ~200 PS EA888 Gen1/2 variants, while CCZB appears in ~211 PS versions.)

  ---

BHZ – 2.0 TFSI 265–272 PS (later EA888)

• Audi S3 8P Sportback / 8PA 2.0 TFSI 265 PS – BHZ

• Audi TTS 8J 2.0 TFSI 272 HP – BHZ

• Seat Leon 1P Cupra / 240–265 PS – CDLA / BWJ / CDLD(common in Cupra versions)

• VW Golf 6 R 2.0 TFSI 270 PS – CDLA

• VW Scirocco III R 2.0 TSI 265 HP – CDLA

These engine codes belong to the high-output variants of the EA888 family (higher-performance TSI tuning groups).

BWJ / CDLD / CDLA – 2.0 TSI ~240–270 PS / “Cupra / HO” variants

? Installed in many sportier models:

• Seat Leon 1P 2.0 TSI 240–265 PS – BWJ / CDLD / CDLA

• VW Golf 6 R 270 PS – CDLA

• VW Scirocco III R 265 PS – CDLA

• Other Cupra/Leon/GTI variants with 240–280 PS – often BWJ / CDLD / CDLA

CCZB / CAWB – 2.0 TSI ~200–211 PS (EA888 Gen 1/2)

? Common engine version, approx. 211 PS:

• VW Golf 6 GTI 2.0 TSI 211 PS – CCZB / CAWB

• VW Scirocco III 2.0 TSI 211 PS – CCZB / CAWB

• Seat Leon / Altea 2.0 TSI 200–211 PS – CCZB / CAWB

• VW Passat / CC 2.0 TSI ~211 PS – CCZB

• VW Beetle 2.0 TSI ~200–211 PS – CCZB
  (Engine code variants with CCZB/CAWB are typical for ~200–211 PS EA888 Gen1/2)
