Upgrade turbocharger Borgwarner up to 400hp for Audi A4 B7, B8, A5 8T, 8F and Seat Exeo 3R VAG long engines

Scope of delivery:
- upgrade turbocharger Borgwarner up to 400hp for Audi A4 B7, B8, A5 8T, 8F and Seat Exeo 3R VAG longitudinal engines

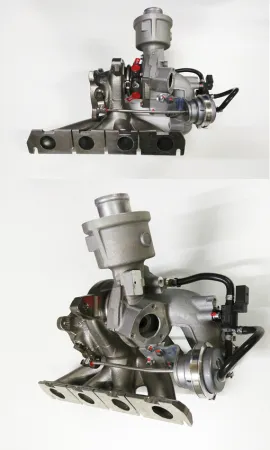

- see also photo

---

Description:
- original K04 manifold 2.0 T(F)SI e.g. from Golf 6 R with CDLF engine adapted for longitudinal engine downpipe, downpipe does not need to be adapted
- original K04 bearing housing from 2.0 T(F)SI e.g. from Golf 6 R with CDLF engine
- High-flow turbine wheel for maximum exhaust gas flow
- Larger milled compressor wheel - Exducer 60 mm
- Modified CNC-machined BorgWarner compressor housing
- original actuator from 2.0 T(F)SI K04 Turbo set to 0.4 bar opening pressure

---

suitable for:
- -> Please specify when ordering which engine it is: EA113 or EA888?
- Audi A4 B7 2.0 TFSI 125-162KW/200-220PS
- Audi A4 B8 2.0 TFSI 132-162KW/180-225PS Engine code CDNB, CAEA, CAEB, CDNC
- Audi A5 8T 2.0 TFSI 132-169KW/180-230PS Engine code CDNB, CAEA, CDNC, CAEB, CNCD, CNCE
- Audi A6 C6 2.0 TFSI
- Audi Q5 8R 2.0 TFSI
- Seat Exeo 3R 2.0 TFSI 147-155KW/200-210PS

---

We would like to point out that the installation of this item constitutes a modification that invalidates the vehicle's operating permit according to the StVZO. Not permitted for use on public roads.

---



---

It may be possible to have the turbo kit registered according to §21 StVZO after a successful exhaust, noise and performance test.

---



---
