Turbo kit for Fiat Punto GT 1.4 with Garrett GT2554 turbocharger + downpipe

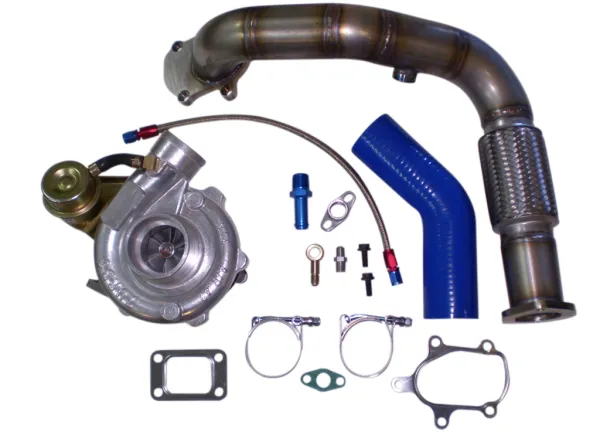

Scope of delivery:
1. Turbocharger Garrett GT2554R2. Stainless steel Y-pipe in 60mm up to the catalytic converter (Y-pipe flange must be welded to the downpipe yourself) 3. Gaskets4. Oil return flange with connection to the original return line5. Oil inlet adapter6. Steel flex oil feed line suitable for Punto GT7. Clamps for silicone bend8. Screws9. Silicone elbow ø 51mm 45° degree

---

Technical data turbocharger:
- Compressor housing outside A/R 80
- Turbine housing 64 A/R
- 360° degree racing bearing
- T25 flange (hole dimensions measured in the center: 73x40mm)
- oil-cooled

---

- water-cooled
- Shaft is finely balanced
- double ball bearing
- up to approx. 1.6 bar
- up to 270 HP

---

suitable for:
- Fiat Punto GT 1.4 Turbo
- Fiat Uno 1.4 Turbo

---

Description:
The old turbo is replaced by the new one. Minor adjustment work, but no welding necessary. The turbo is good for up to approx. 260 HP on the Punto GT 1.4, but the software must be adapted for this.
