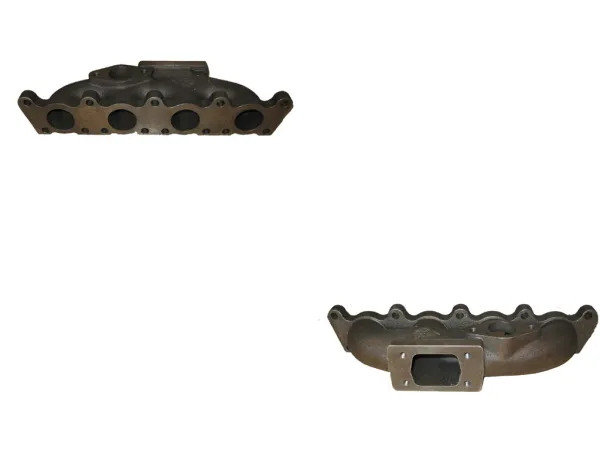

Turbo manifold for 1.8T A3 A4 Golf 4 TT S3 with T25 flange cast nickel turbo manifold

Scope of delivery: - Turbo manifold for 1.8T with wastegate connection 35/38mm

---

Technical data:
- Cast turbo manifold
- T25 flange (hole center measured 73x40mm) M8 thread
- Wastegate connection 35 or 38mm
- Wastegate flange can also be closed so that you can use turbochargers with internal wastegate

---

Description:
Our cast manifolds are produced in a metal mold from high-quality cast iron and then CNC-machined, which is characterized by high fitting accuracy. In contrast to the tubular manifold, this one is more durable. The manifold additionally has a connection for a wastegate.

---

Suitable for:
- all Audi/VW 1.8T engines for conversion to larger turbocharger
- for turbochargers with T25 flange:

---

Garrett GT2554R, Garrett GT2560R, Garrett GT28R, Garrett GT2860R,  Garrett GT28RS, Garrett GT2860RS, Garrett GT2871R, Garrett GT2876R, Garrett GT3071R

---

Garrett GTX2860R, Garrett GTX2863R, Garrett GTX2867R

---

Borgwarner EFR 6258, Borgwarner EFR 6758

---

GTR-25, GTR-2571, GTR-2871R and other turbos with T25 flange

---

Optional matching accessories:
- Manifold gasket T25 for turbo
- Copper nuts M8
- Stud bolt M8
- Locking plate 38mm for wastegate
- Wastegate 38mm gasket
