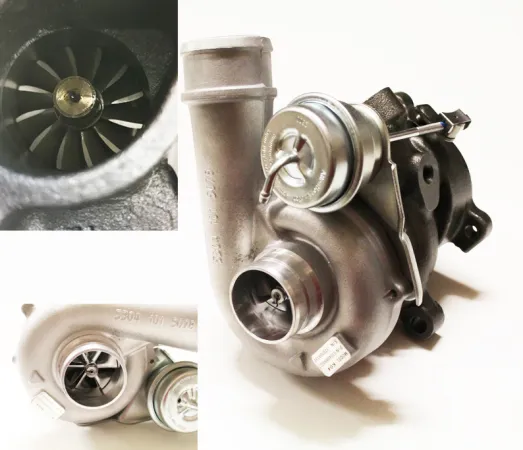

Upgrade turbocharger K04-023 53049880023 for Audi S3 8L TT 8N up to 330hp 60>46,5mm compressor wheel + RS6 turbine wheel

Scope of delivery:
- 1x upgrade turbocharger K04-023 53049880023 for Audi S3 8L TT 8N up to 340hp 60>46.5mm compressor wheel  + RS6 turbine wheel

---

Technical data:
- Connection for lambda sensor in the exhaust housing
- Oil and water cooled
- Internal wastegate (opening pressure 0.7 bar)
- Turbo is finely balanced
- Turbine wheel 50>44.5mm (original 50>42mm) incl. rotor grinding
- Compressor wheel 60>46.5mm (original 56>41.9mm)

---

Description:
-  This turbocharger is a 1:1 replacement for the original, nothing needs to be changed. With a larger intercooler kit, ø 76mm downpipe, upgrade manifold, corresponding engine components such as a machined cylinder head and a software adaptation, up to 330hp are possible. Suitable K04 gasket from the manifold to the turbo.

---

Please note that after replacing the turbocharger, the oil supply and return lines must be replaced. These can be obtained from your VAG dealer.

---

suitable for:
- Audi S3 8L 1.8T with engine code APY / AMK / BAM
- Audi TT 8N 1.8T 225-240hp APX / BAM / BEA / BFV
- Seat Leon Cupra 1M1 R 209-225hp AMK / BAM
