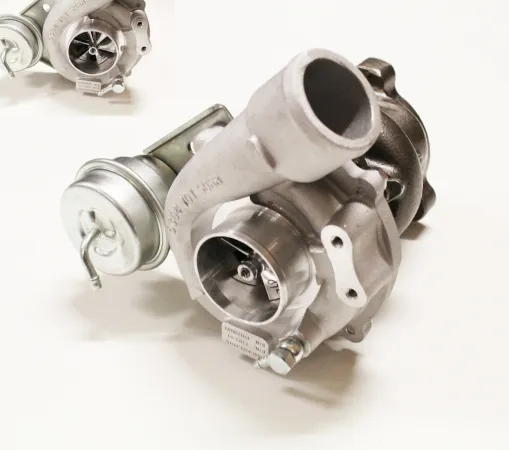

Turbocharger upgrade K04-015 for Audi A4, A6 1.8T, Passat 1.8T up to 300hp Compressor wheel 60>46,5mm - Turbine wheel 50>42mm

Scope of delivery: - Turbocharger upgrade K04-015 for Audi A4, A6 1.8T, Passat 1.8T up to 300hp Compressor wheel 60>46.5mm - Turbine wheel 50>42mm

---

Description:
- the turbocharger is installed in the longitudinally mounted Audi / Seat / VW 1.8T engines such as Audi A4 B5 1.8T or Passat 3B 1.8T. The turbocharger fits 1:1 and replaces the original. All connections are as original, except the turbo inlet is slightly 50mm. For this you must use this intake hose: 380905 or 380906 The software must be adapted to the turbo. In order to achieve a power output of approx. 300hp, the following must be installed: silicone intake hose, 380cc injectors, intercooler kit, upgrade manifold, 200 cell sports cat, min. 63.5mm downpipe and exhaust system. With the right ECU adaptation, up to 300hp are possible.

---

Please note that after replacing the turbocharger, the oil supply and return lines must be replaced. These are available from your VAG dealer.
- Compressor wheel 60>46.5mm from milled aluminum block
- Turbine wheel 50>42mm (original 45>42mm) as from 53049880023 S3 TT 1.8T turbocharger with rotor refinement
- Wastegate actuator opening pressure approx. 0.5 bar (stronger actuator 0.7 bar is available under item no. 460139)

---

suitable for:
- Audi A4 1.8T with engine code AEB,APU,ARK, ANB, AJL, BFB, BEX, AVJ
- Audi A6 1.8T with engine code AEB,APU,ARK,ANB,AJL, AWT
- Passat 1.8T with engine code AEB, APU, ARK, ANB, AWT
- also for small turbo conversions up to 1.8L such as G40, Fiat Punto/Uno Turbo, etc.

---

Optional matching parts:
- Intake hose silicone for Audi A4, A6 B5 B6 Passat 1.8T 150hp-193hp black ø 51mm turbo inlet ø 80mm MAF inlet 380906
- Intake hose silicone for Audi A4, A6 B5 B6 Passat 1.8T 150hp-193hp black ø 51mm turbo inlet 380905
- Special tuning 1.8T according to your specifications
