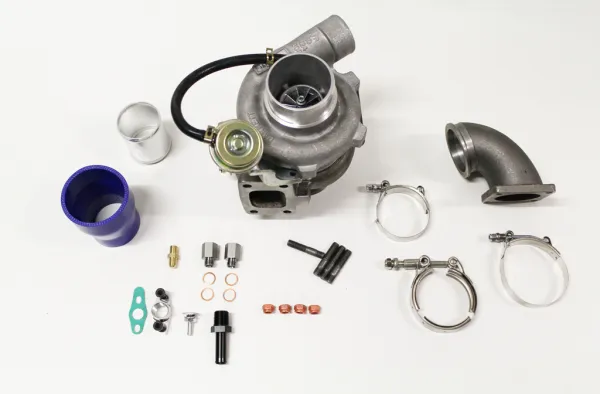

Turbokit / Turbocharger Garrett GTX3071R for Fiat/Lancia 16v 8v Turbo Delta Integrale

Scope of delivery:
  1x Garrett GTX3071R 836042-5002S up to 560hp 440203
  1x Adapter 1/2 NPT > Hose connection 15mm 120125
  1x Metal gasket for T3 flange
  1x Gasket for oil return GT
  4x Copper gasket M14 14x18x1.5mm
  1x Aluminum pipe connector ø 60mm - L 80mm - 1.5mm wall thickness flanged 271206
  1x Clamp HD wide band clamp 87-79mm for 76mm silicone, stainless steel 19mm wide
  1x V-band clamp 63.5mm 350106
  1x Silicone reducer straight 76x60mm inner diameter blue L 100mm 4-ply 5mm wall thickness 380180
  1x Internal wastegate with 5-hole flange plate for T3/T4 + GT30 + GT28 turbocharger 460119
  1x Clamp HD wide band clamp 71-63mm for 57-60mm silicone, stainless steel 19mm wide
  1x Elbow / downpipe cast for Fiat Coupe 2.0L 16v Turbo, Lancia Delta Integrale
  4x Stud bolt M10x40 stud bolt
  1x Quick Tap for silicone hose vacuum connection 6mm 600149
  4x Copper nut M10, nut made of copper with 14mm wrench size
  1x Oil restrictor GT-R turbocharger M11x1mm to 7/16 UNF (Dash 04)  with 0.9mm bore 300128
  1x Flange for oil return for GT-R ball bearing turbos GT28, GT28RS, GT2871R, GT30 200209
  2x Adapter M14 male thread to M16 female thread
  2x Hexagon screw M8 x 20 12.9
  1x Pressure unit / internal wastegate for T3/T4 turbocharger  1 connection 30cm long
  1x Oil feed line PTFE 50cm for 90° 7/16 UNF other side eyelet ø 14mm 300226
  1x Exhaust housing ATP for GT3076R, GTX3071R, GTX3076R 82 A/R Ford Style 5-hole 441242
  1x Retaining plate for turbo kit Lancia 16v GT3071R
  1x Mounting kit turbocharger for exhaust housing with 6 screws for GT25xx GT28xx, GT30xx,

---

---

Technical data turbocharger:
- Compressor housing exterior A/R 60
- Turbine housing ATP optionally 63 A/R or 82A/R
-  ball bearing
- T3 flange (hole dimensions measured centrally: 86x45mm)
- oil-cooled

---

- water-cooled
- up to 560hp

---

suitable for:
- Fiat/Lancia 16v Turbo 4 cylinder 2.0 liter.
- Fiat/Lancia 8v Turbo with catalytic converter 4 cylinder 2.0 liter.

---

The old turbo is simply replaced with the new one. No welding necessary. Oil and water connections fit from the old turbo, but in any case the oil feed line should be replaced. The original intercooler must be relocated because the intake is 76mm and the original intake hose no longer fits.

---

Registration:
- For an individual approval according to §21 StVZo, please ask our partner company Exclusive-Tuningparts e.K. at https://go-street-legal.com/

---

We point out that the installation of this item constitutes a modification which voids the vehicle’s operating license in accordance with the StVZO. Not permitted for use on public roads.

---



---

It may be possible to have the turbo kit registered under §21 StVZO after successful exhaust, noise, and performance measurement.
