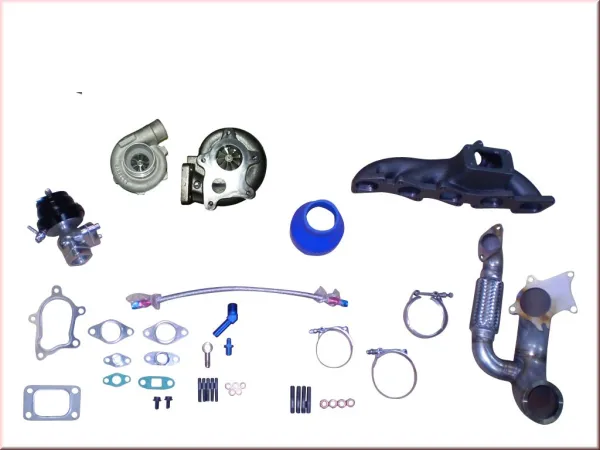

Turbo kit for Fiat Coupe 20v + turbo up to 360 hp with Garrett GT28RS + exhaust manifold + wastegate

Scope of delivery:
1x metal gasket for T3 flange 2x metal gaskets for 38mm wastegate 1x gasket for oil return T3/T4 GT40 1x HD wide-band clamp 87-79mm for 76mm silicone, stainless steel, 19mm wide 1x V-band clamp 63.5mm 1x silicone reducer straight 76x60mm inner diameter blue L 100mm 4-ply 5mm wall 1x wastegate 38mm aluminum CNC-machined with accessories 0.4 bar for VR6 16v turbo 1x M12 ring eye to D04 1x HD wide-band clamp 71-63mm for 57-60mm silicone stainless steel 19mm wide 1x silicone vacuum hose Ø 6mm length 1 meter blue 1x metal gasket for downpipe flange T3/T4, GT30, GT35 5-hole 5x stud bolt M10x40 stud bolt 4x stud bolt M8x35 stud bolt 1x adapter for oil inlet on T3/T4 + GT30 + GT35 journal bearing 3mm M12x1.5 5x copper nut M10 nut made of copper with 14mm wrench size 4x copper nut M8 nut made of copper with 12mm wrench size 1x turbo manifold Fiat Coupe 20v Turbo 20vT T3 + 38mm WG-connection turbo manifold 1x adapter 45° 1/2 NPT > hose connection 15mm 1x elbow is supplied in individual parts for self-welding. Photo is for illustrative purposes only

---

1x oil supply line D04 7/16 UNF 90° + M12 ring eye connectors 50cm PTFE Teflon 1x Garrett GT2860RS - 739548-1 GT28RS with T3 flange and 5-hole downpipe flange

---

Technical data turbocharger:
- Garrett GT28RS 739548-1
- Turbine housing 63A/R or 82A/R selectable
- double ball bearings
- T3 flange (hole dimensions measured centrally: 86x45mm)
- oil-cooled

---

- water-cooled
- Shaft is finely balanced
- up to 360 hp

---

Suitable for:
- all Fiat Coupe/Marea/Bravo 20vt Turbo 5 cylinder, including vehicles with air conditioning.

---

To achieve an output of approx. 360 hp, even larger injectors e.g. 440cc, fuel pump 255L/h are required and the software (chip) must be adjusted.
