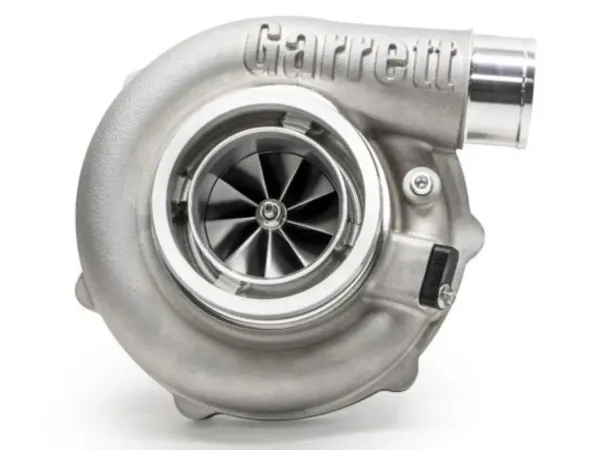

Garrett G25-550 871389-5004S up to 550hp 72A/R V-band flange ball bearing ceramic ball bearing

Scope of delivery:
- Garrett G25-550 871389-5004S up to 550hp 72A/R V-band flange ball bearing ceramic ball bearing

---

Technical data:
- Fresh air housing High-Flow 70A/R - Trim 64
- Fresh air wheel: Exducer 60mm - Inducer 48mm
- Ceramic double ball bearing
- Power 550hp
- Exhaust housing V-band inlet 72A/R and V-band outlet
- oil-cooled
- Oil restrictor incl.
- Part no. 871389-5004S
- Turbine wheel Inconel: Inducer 54mm - Exducer 49mm - Trim 84
- water-cooled

---

Suitable for:
- Engines with displacement from 1.8L to 3.0L 550hp

---

Suitable accessories:
- Weld-on ring for Y-pipe outlet
- Weld-on ring for turbo inlet 200195
- Gasket for oil return flange 170109
- Gasket for water connection 170116
- Banjo bolt M14 for water connection 300138
- Ring eye M14 for water connection 300143
- Oil return flange 200209
- Oil restrictor 300128
- Silicone hoses and clamps
- V-band clamp for Y-pipe outlet 350105
- V-band clamp for turbine housing inlet 350106

---



---

Description:
With us you receive an original Garrett turbocharger. We source these from Garrett distributors, so you can be sure the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out etc.

---



---

The Garrett GT and GTX series are all double ball bearing, finely balanced and oil- and water-cooled. There is also the older generation T series; these are mostly plain bearing. The GTX series differs from the normal GT in that the former has a special, larger compressor wheel with more blades, which results in more power and slightly better response. It is important with the ball bearing turbochargers, that they do not get too much oil pressure. Therefore, an oil restrictor with a 0.9mm bore is used for the oil feed. A ball bearing turbo responds approx. 400-500 rpm earlier than a plain bearing turbo. When selecting the right turbocharger, ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. All information, such as exhaust housing options, product description, performance map and drawings, is available there.
