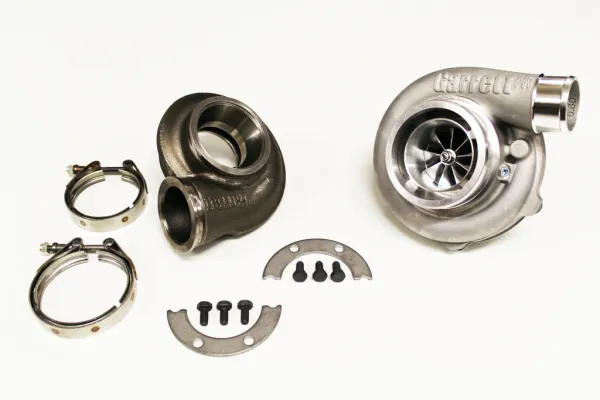

Garrett GTX3576R GEN II 856801-5058S 400-750hp V-band 1.01 A/R ball bearing ceramic ball bearing

Scope of delivery:
- Garrett GTX3576R GEN II 856801-5058S 400-750hp V-Band 1.01 A/R ball bearing ceramic ball bearing

---

Technical data:
- Exhaust housing 1.01 A/R V-band inlet 76>60mm and outlet 90>82mm
- for external wastegate
-  Fresh air housing High-Flow 60A/R - Trim 58
- Fresh air wheel: Exducer 76mm - Inducer 58mm - Inlet 102mm - Outlet 51mm
- Ceramic double ball bearing (ball bearing)
- Power 400-750hp
- oil-cooled
- Part no. 856801-5058S
- Turbine wheel Inconel: Inducer 68mm - Exducer 62mm - Trim 84
- water-cooled

---

Suitable for:
- Engines with displacement from 2.0L to 4.5L 400-750hp

---

Description:
With us you get an original Garrett turbocharger. We obtain these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out etc.

---



---

The Garrett GT and GTX series are all double ball bearing mounted, finely balanced and oil and water cooled. There is also the older generation T series, which are mostly mounted on plain bearings. The GTX series differs from the normal GT in that it has a special, larger compressor wheel with several blades which results in more power and slightly better response. It is important with the ball-bearing turbochargers that they do not get too much oil pressure. For this reason, an oil restrictor with 0.9mm bore is used for the oil inlet. In comparison, a ball-bearing turbo responds approx. 400-500 rpm earlier than a plain bearing turbo. When choosing the right turbocharger, please ask us or check the manufacturer's website http://turbobygarrett.com/turbobygarrett/turbochargers directly. All details such as exhaust housing options, product description, performance map and drawings are available there.
