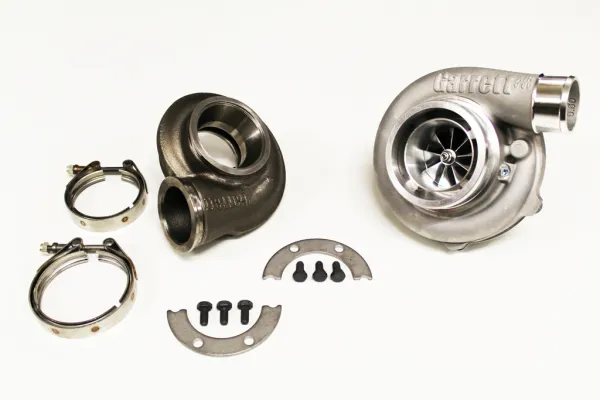

Garrett GTX3582R GEN II 856801-5080S 450-850hp V-belt 83 A/R V-belt ball bearing ceramic ball bearing keramik ball bearing

Scope of delivery:
- Garrett GTX3582R GEN II 856801-5080S 450-850hp V-Band 83 A/R V-Band ball bearing ceramic ball bearing

---

Technical data:
- Exhaust housing 83 A/R V-Band inlet 76>60mm - 3" V-Band outlet
- for external wastegate
-  Fresh air housing High-Flow 70A/R - Trim 64
- Fresh air wheel: Exducer 82mm - Inducer 66mm
- Ceramic double ball bearing (ball bearing)
- Power 450-850hp
- oil-cooled
- Part no. 856801-5080S
- Turbine wheel Inconel: Inducer 68mm - Exducer 62mm - Trim 84
- water-cooled

---

Suitable for:
- Engines with displacement from 2.0 to 4.5L 450-850hp

---

Description:
With us you get an original Garrett turbocharger. We obtain these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out, etc.

---



---

The Garrett GT and GTX series are all double ball bearing, finely balanced and oil- and water-cooled. There is also the older generation T series which are mostly plain bearing. The GTX series differs from the normal GT, in that these have a special, larger compressor wheel with more blades which results in more power and slightly better response. It is important with the ball bearing turbocharger that these do not get too much oil pressure. This is why an oil restrictor with 0.9mm bore is used for the oil supply. A ball bearing turbo responds comparatively about 400-500 rpm earlier than a plain bearing turbo. For help selecting the right turbocharger, ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. There you will find all information such as exhaust housing options, product description, performance map and drawings.
