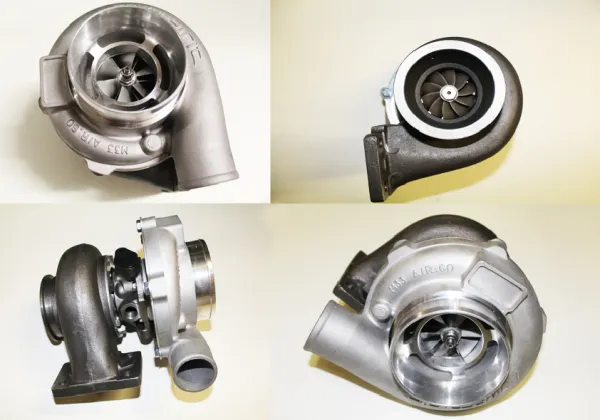

Turbocharger GT3076 HF High Flow 60A/R - 82A/R T3 flange - 4-bolt connection, plain bearing

Scope of delivery: - GT3076 HF turbocharger
- Gasket T3 flange fitting
- Gasket for oil inlet and return

---

Technical data:
- Compressor housing outer 102mm A/R 60 360 degrees rotatable
- Compressor wheel: 76>58mm milled from aluminum
- Turbine housing 82 A/R 360 degree rotatable
- T3 flange (hole dimensions 86x45mm)
- oil-cooled

---

- water cooled
- plain bearing
- Shaft is finely balanced
- up to 2 bar
- up to 525hp
- 4-bolt connection
- Water connections M18x1.5mm

---

Suitable for:
- for engines from. 1.8l to approx. 4L
- for manifold with T3 flange

---

Optional matching parts:
- Specific oil and water connection kit for turbo 440168 GT30: 300187
- Adapter for oil inlet on T3/T4 + GT30 + GT35 plain bearing M12x1.5mm 300103
- Weld-on ring V-band made of stainless steel 95>76mm 200214
- Gasket for oil return T3/T4 GT40 170109
- V-band gasket ø 76mm 3" V-band gasket 170118
- Metal gasket for T3 flange 170101
- Copper gasket M14 14x18x1.5mm 170116
- Copper gasket M14 14x18x1.5mm 200209
- Clamp V-band ø 76mm 3" 350105
- Ring eye ø 14mm on hose connection 10mm 300143
