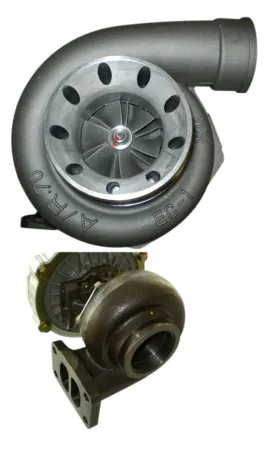

Turbocharger GTR-550 HF (GT3082, GT30/40 ) 550hp 70>82A/R 360° racing bearings T3

Scope of delivery:
- Turbocharger GTR-550
- Gasket T3 flange fitting
- Gasket for oil inlet and return

---

Technical data:
- Compressor housing high flow outside 102mm A/R 70
- Compressor wheel 82>61.4mm inlet
- Turbine housing 82 A/R with T3 flange and V-band connection 63.5mm (can be enlarged to 76mm with a reduction)
- T3 flange (hole dimensions 86x45mm)
- oil-cooled

---

- water cooled
- plain bearing
- Shaft is finely balanced
- with serial number (important for registration)
- up to 2 bar
- up to 550hp

---

Suitable for:
- from 2.2L to 5 L
- all turbo manifolds with T3 flange

---

Optional matching parts:
- Adapter for oil inlet on T3/T4 + GT30 + GT35 plain bearing M12x1.5mm
- Weld-on ring V-band made of stainless steel 63.5-79mm
- Gasket for oil return T3/T4 GT40
- Metal gasket for T3 flange
- Copper gasket M14 14x18x1.5mm
- Flange for oil return for T3/T4 made of aluminum 1/2 NPT + GT40 GT42
- Clamp V-band 63.5mm
- Ring eye M14 to hose connection 10mm
