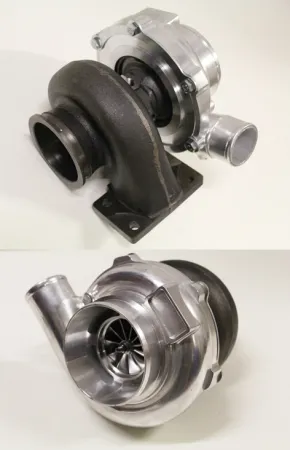

Turbocharger GTX3076 HF High Flow 60A/R - 82A/R T3 flange ball bearing mounted

Scope of delivery:
- GTX3076 HF turbocharger with ball bearings
- T3 flange gasket, compatible
- Gasket for oil supply and return

---

Technical specifications:
- Supercharger housing outer diameter 102 mm, A/R 60
- Compressor impeller: 76>56.5 mm
- Turbine housing 82 A/R
- T3 flange (hole dimensions 86x45mm)
- Oil-cooled

---

- Water-cooled
- Ball-bearing mounted
- Shaft is precision-balanced
- up to 2 bar
- up to 640 hp
- V-band outlet 3" 76mm

---

Suitable for:
- For engines from 1.8L to approx. 4L
- For exhaust manifold with T3 flange
