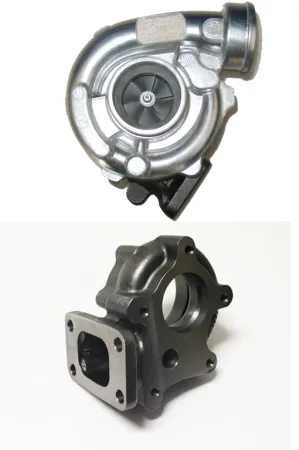

Turbocharger T3 320hp 42A/R-48A/R 360° racing bearing T3 flange

Scope of delivery:
- Turbocharger T3 incl. manifold gasket and oil and return gasket

---

Technical data:
- Compressor housing 42A/R
- Turbine housing 48 A/R
- Turbine wheel 64>49mm
- plain bearing
- oil-cooled
- water-cooled
- T3 (86x45mm hole dimensions measured in the center) manifold flange
- 5 hole Y-pipe flange with milled hole for wastegate

---

Suitable for:
- Engines from 1.3L to 2.5L
- all manifolds with T3 flange

---

Optional matching parts:
- Adapter for oil inlet on T3/T4 + GT30 + GT35 plain bearing M12x1.5mm
- Gasket for oil return T3/T4 GT40
- Metal gasket for Y-pipe flange T3/T4, GT30, GT35 5-hole
- Metal gasket for T3 flange
- Copper gasket M14 14x18x1.5mm
- Flange for Y-pipe for T3/T4 with 5-hole outlet 12mm thick stainless steel
- Flange for oil return for T3/T4 made of aluminum 1/2 NPT + GT40 GT42
- Ring eye M14 to hose connection 10mm
