Turbokit / Turbocharger Garrett GT28RS <360hp for Fiat/Lancia 16v 8v Turbo Delta Integrale

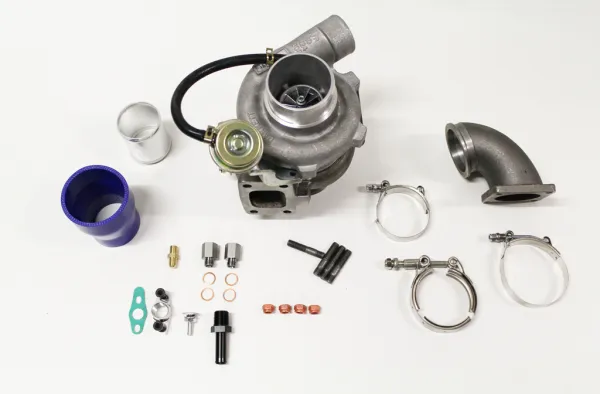

Scope of delivery:
1. Garrett GT2860RS - 739548-1 GT28RS 63 or 82A/R with T3 flange and 5-hole Y-pipe flange 440127
2. Clamp HD wide band clamp 87-79mm for 76mm silicone made of stainless steel 19mm wide
3. Clamp V-band 63.5mm 350106
4. Silicone reducer straight 76x60mm inner diameter blue L 100mm 4-ply 5mm wall thickness 380180
5. Internal wastegate with 5-hole flange plate for T3/T4 + GT30 + GT28 turbocharger
6. Clamp HD wide band clamp 71-63mm for 60mm silicone made of stainless steel 19mm wide
7. Elbow cast for Fiat/Lancia 16v from turbocharger V-band 63.5mm to 4-hole
8. Adapter M14 male thread to M16 female thread

---

Technical data turbocharger:
- Exterior compressor housing A/R 60
- Turbine housing ATP either 63 A/R or 82A/R
-  ball bearing
- T3 flange (hole dimensions measured in the center: 86x45mm)
- oil-cooled

---

- water-cooled
- up to approx. 1.6 bar
- up to 360 hp

---

suitable for:
- Fiat/Lancia 16v Turbo 4 cylinder 2.0 liter.
- Fiat/Lancia 8v Turbo with catalytic converter 4 cylinder 2.0 liter.

---

The old turbo is simply replaced with the new one. No welding required. Oil and water connections fit from the old turbo, but in any case the oil supply line should be renewed. The original intercooler must be relocated, as the intake is 76mm and the original intake hose no longer fits.

---

We would like to point out that the installation of this item constitutes a modification that invalidates the vehicle's operating license according to StVZO. Not permitted for use on public roads.

---



---

It may be possible to register the turbo kit according to §21 StVZO after successful exhaust, noise and performance measurement.
