Turbokit / Turbocharger Garrett GT28R <300hp für Fiat/Lancia 16v 8v Turbo Delta Integrale

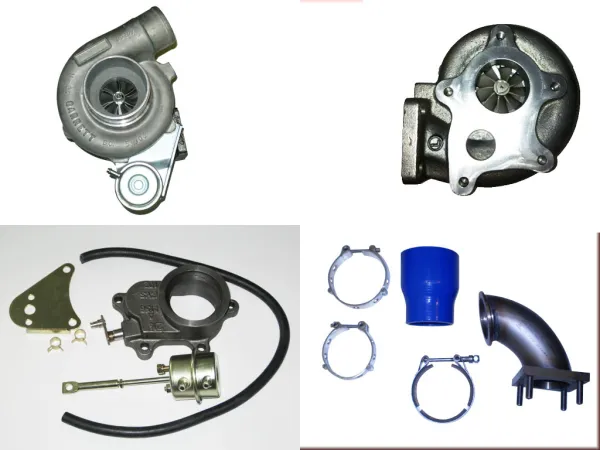

Scope of delivery:
  1x Garrett GT2560R (aka GT28R)  466541-5001S  ball bearing 440152
  1x Adapter 1/2 NPT > hose connection 15mm 120183
  1x gasket for oil return GT
  4x copper gasket M14 14x18x1.5mm
  1x flange for compressor side inlet GT28R GT2871R with 60mm aluminum tube supports 200125
  1x flange for compressor side outlet GT2560R, GT28R, GT2871R with 51mm pipe supports 200127
  1x clamp HD wide band clamp 87-79mm for 76mm silicone made of stainless steel 19mm wide
  1x clamp V-band 63.5mm 350106
  1x wastegate internal with 5-hole flange plate for T3/T4 + GT30 + GT28 turbocharger 200100
  1x wastegate pressure can for turbocharger GT28RS
  1x clamp HD wide band clamp 71-63mm for 57-60mm silicone made of stainless steel 19mm wide
  1x elbow / downpipe cast for Fiat Coupe 2.0L 16v Turbo, Lancia Delta Integraô
  4x stud bolt M10x40 stud bolt
  1x Quick Tap for silicone hose vacuum connection 6mm 600149
  4x copper nut M10 nut made of copper with 14 mm wrench size
  1x oil restrictor GT-R turbocharger M11x1mm with 0.9mm bore brass 300128
  1x flange for oil return for GT-R ball bearing turbos GT28, GT28RS, GT2871R, GT30 200209
  2x adapter M14 male thread to M16 female thread
  1x oil feed line PTFE 50cm for 90° 7/16 UNF other side ring eye ø 14mm 300226
  1x exhaust housing ATP for GT2554R / GT2560R 48 A/R Ford style 5-hole for internal wastegate 441247

---

Technical data turbocharger:
- Exterior compressor housing A/R 60
- Turbine housing ATP 48 A/R
-  ball bearing
- T3 flange (hole dimensions measured in the center: 86x45mm)
- oil-cooled

---

- water cooled
- up to 300hp

---

suitable for:
- Fiat/Lancia 16v Turbo 4 cylinder 2.0 liter.
- Fiat/Lancia 8v Turbo with catalytic converter 4 cylinder 2.0 liter.

---

The old turbo is simply replaced with the new one. No welding necessary. Oil and water connections fit from the old turbo, but the oil supply line should definitely be replaced. The original intercooler must be moved because the intake is 76mm and the original intake hose no longer fits.

---

Registration:
- for an individual approval according to §21 StVZo please ask our partner company Exclusive-Tuningparts e.K. for https://go-street-legal.com/

---

We would like to point out that the installation of this article constitutes a modification which invalidates the vehicle's operating license in accordance with the StVZO. Not permitted for use on public roads.

---



---

It may be possible to register the turbo kit according to §21 StVZO after a successful exhaust, noise and performance measurement.
