Turbokit / Turbocharger Garrett GTX2867R GEN II for Fiat/Lancia 16v 8v Turbo Delta Integrale

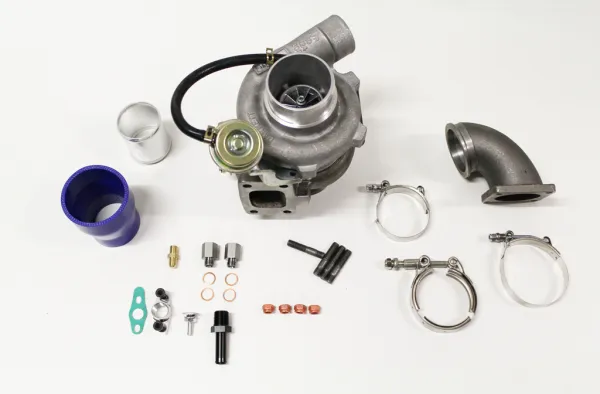

Scope of delivery:
  1x Garrett GTX2867R GEN II 856800-5005S 275-550HP V-Band 57 A/R ball bearing ceramic 440470
  1x metal gasket for T3 flange
  1x gasket for oil return GT
  4x copper gasket M14 14x18x1.5mm
  1x aluminum pipe connector ø 60mm - L 80mm - 1.5mm wall thickness flanged 271206
  1x clamp HD wide-band clamp 75-67mm for 60-63.5mm silicone made of stainless steel 19mm wide
  1x clamp HD wide-band clamp 87-79mm for 76mm silicone made of stainless steel 19mm wide
  1x clamp V-Band 63.5mm 350106
  1x straight silicone reducer 76x60mm inner diameter blue L 100mm 4-layer 5mm wall thickness 380180
  1x internal wastegate with 5-hole flange plate for T3/T4 + GT30 + GT28 turbocharger 460119
  1x clamp HD wide-band clamp 71-63mm for 57-60mm silicone made of stainless steel 19mm wide
  1x elbow / downpipe cast for Fiat Coupe 2.0L 16v Turbo, Lancia Delta Integrale
  4x studs M10x40 stud bolt
  1x Quick Tap for silicone hoses vacuum connection 6mm 600149
  4x copper nut M10 nut made of copper with 14mm wrench size
  1x oil restrictor GT-R turbocharger M11x1mm to 7/16 UNF (Dash 04)  with 0.9mm bore 300128
  1x adapter 45° 1/2 NPT > hose connection 15mm 120183
  1x flange for oil return for GT-R ball bearing turbos GT28, GT28RS, GT2871R, GT30 200209
  2x adapter M14 male thread to M16 female thread
  2x hexagon screw M8 x 20 12.9
  1x retaining plate for Turbo Kit Lancia 16v T3/T4 T3/T60 GT28xx GT35xx
  1x pressure canister / internal wastegate for T3/T4 turbocharger  1 connection 30cm long
  1x oil supply line PTFE 50cm for 90° 7/16 UNF other side ring eye ø 14mm 300226
  1x exhaust housing ATP for GT28, GTX28 63 A/R Ford Style 5-hole for internal wastegate 441246
  1x mounting kit turbocharger for exhaust housing with 6 screws for GT25xx GT28xx, GT30xx

---



---

Technical specifications:

- exhaust housing ATP 63 A/R or 82 A/R T3 flange - 5-hole outlet
- connection for RPM sensor
-  intake housing High-Flow 60A/R - Trim 55
- intake wheel: exducer 67mm - inducer 50mm
- ceramic double ball bearing
- power 275-550HP
- internal wastegate without pressure canister
- oil-cooled
- part no. 856800-5007S
- turbine wheel Inconel: inducer 54mm - exducer 47mm - trim 76
- water-cooled

---

Fits:
- Fiat/Lancia 16v Turbo 4-cylinder 2.0-liter.
- Fiat/Lancia 8v Turbo with catalytic converter 4-cylinder 2.0-liter.

---

The old turbo is simply replaced with the new one. No welding required. Oil and water connections fit from the old turbo, but the oil supply line should definitely be renewed. The original intercooler must be repositioned because the intake is 76mm and the original intake hose no longer fits.

---

Please note that the installation of this item constitutes a modification that renders the vehicle's operating permit invalid under the StVZO. Not permitted for use on public roads.

---



---

The turbo kit can possibly be registered according to §21 StVZO after successful emissions, noise, and performance measurement.
