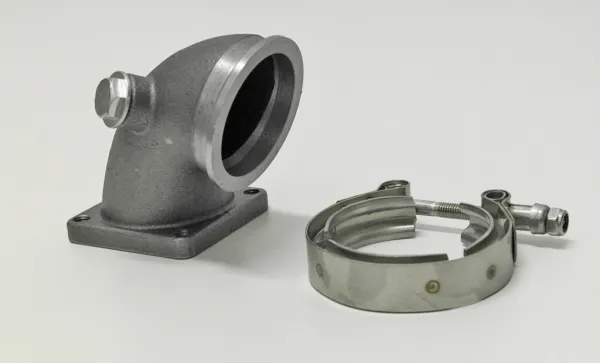

Elbow / downpipe cast for Fiat Coupe 2.0L 16v turbo, Lancia Delta Integrale 2.0L 16v or 8v turbo from turbocharger V-band 63,5mm to 4-hole

Scope of delivery: - Elbow for Lancia Delta Integrale 2.0L 16v or 8v  / Fiat Coupe 2.0L 16v Turbo
- V-band clamp 63.5mm stainless steel

---

Technical data:
The elbow is cast and sits between turbocharger and downpipe. The surfaces are machined. One connection is V-band 63.5mm (outer diameter 79mm) and the one that goes to the Y-pipe is square, has 4 x M8 threads, and there is also a connection for the M18 lambda sensor. The inner diameter is min. ø 60mm

---

only suitable for:
Lancia Delta Integrale 2.0L 16v or 8v Turbo and Fiat Coupe 2.0L 16v Turbo

---

in conjunction with these turbos:
- Turbocharger T3 http://www.turbo-parts.d e/ Turbocharger/Turbocharger-T3-320PS-with-Wastegate-42A-R-48A-R-360-GRAD-Renngelagert-T3-Flange::610.html
- Turbocharger T3/T60 http://www.turbo-p ar ts.de/Turbocharger/Turbocharger-T3-T60-T3-4-360PS-with-Wastegate-60A-R-48A-R-360-GRAD-Renngelagert-T3-Flan::612.html
- Turbocharger T3/T4 http://www.turbo-part s. de/Turbocharger/Turbocharger-T3-T4-400PS-with-Wastegate-60A-R-63A-R-360-GRAD-Renngelagert-T3-Flange::614.html

---

or Garrett Turbos that have the Ford style 5-hole V-band flange http://www.t ur bo-parts.de/Flansche/Flansche-am-Turbo/Flange-5-Loch-fuer-Hosenrohr-63-5mm-2-5-fuer-T3-T4-mit-internen-Wastegate::127.html
