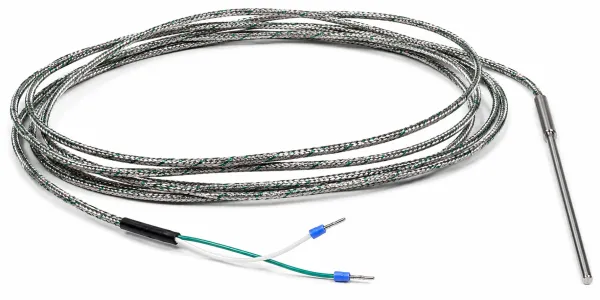

Exhaust Gas Temperature (EGT) Sensor Type K – 3mm INCONEL
This industrial Type K sheathed thermocouple sensor is specifically designed for high-precision exhaust gas temperature measurement in systems subjected to high thermal and mechanical stress. By using a nickel-chromium-nickel alloy and an INCONEL sheath, the component ensures excellent oxidation resistance and mechanical strength at operating temperatures up to 1200°C.
Unlike sensors with silicone-sheathed cables (thermal limit at 200°C), this version features 3-meter-long glass-silk insulation designed for continuous operation at ambient temperatures of up to 400°C in areas close to the engine. The 3 mm diameter provides the optimal balance between a short thermal response time (response behavior) and high structural stability against high-frequency vibrations and pulsating pressure changes in the exhaust manifold.
Technical Specifications:
| Parameters | Specifications |
| Sensor element | NiCr-Ni (Type K) according to DIN EN 60584 |
| Measuring range | -200°C to +1200°C |
| Dimensions of sensor tube | 3.0 mm x 100 mm |
| Sheath material | INCONEL (high-temperature-resistant nickel-chromium-based superalloy) |
| Flexibility | Flexible, minimum bend radius: 15 mm |
| Connection cable | 3.0 m glass-fiber cable with stainless steel braiding (can be shortened) |
| Cable temperature resistance | Max. 400°C |
| Weight (including cable) | 170 g |
| Installation compatibility | Compatible with standard 3mm compression fittings |
Design and safety instructions:
Installation depth: The maximum insertion depth of the sensor into the exhaust stream is 10 mm, to minimize flow resistance and leverage effects during vibrations.
Signal extension: The connection cable may only be extended using specified thermocouple connectors (Type K) to prevent measurement errors caused by thermoelectric interference.
Installation: Installation requires qualified technical personnel (to ensure correct torque values are applied to the compression fitting).
Scope of delivery:
1x Type K exhaust gas temperature sensor (Ø 3mm, INCONEL material)
3m permanently attached glass-sheathed cable (thermocouple-compatible)
Suitable for:
All turbocharged vehicles: Universally applicable for turbocharged gasoline engines (e.g., TFSI, TSI, 1.8T) and diesel engines (TDI) to monitor the thermal load limit of the turbocharger.
Applications with high exhaust manifold ambient temperatures: Specifically designed for engine compartments and performance modifications where radiant heat in the area of the exhaust manifold exceeds the thermal resistance of standard silicone cables.
Extended installation options: The generous cable length of 3 meters allows for direct, uninterrupted routing from the engine compartment to display instruments in the A-pillar or center console.
Compatible measurement systems: As an OEM replacement part or upgrade for all common EGT display units and data loggers with a Type K input and 3mm cut-ring or compression fittings.
